| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Feeder: | Letf: 29pcs; Right:29pcs | Placement Head: | 2pcs |
|---|---|---|---|
| Nozzles: | 4 Types Of Nozzle (Juki) | Speed: | 3000cph With Vision; Without Vision 5000cph |
| Accuracy: | 0.025mm | PCB Size: | 10*10mm - 345*355mm |
| Mounting Precision: | ±0.025mm | Voltage: | 220V (110V), 50Hz |
| Net Weight: | 75kg | Machine Dimension: | L 960mm* W 705mm* H 335mm |
| High Light: | 345*355mm PCB Pick And Place Machine,10*10mm PCB Pick And Place Machine,345*355mm LED Assembly Equipment |
||

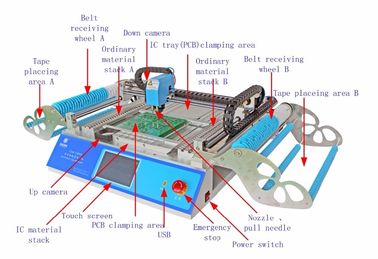

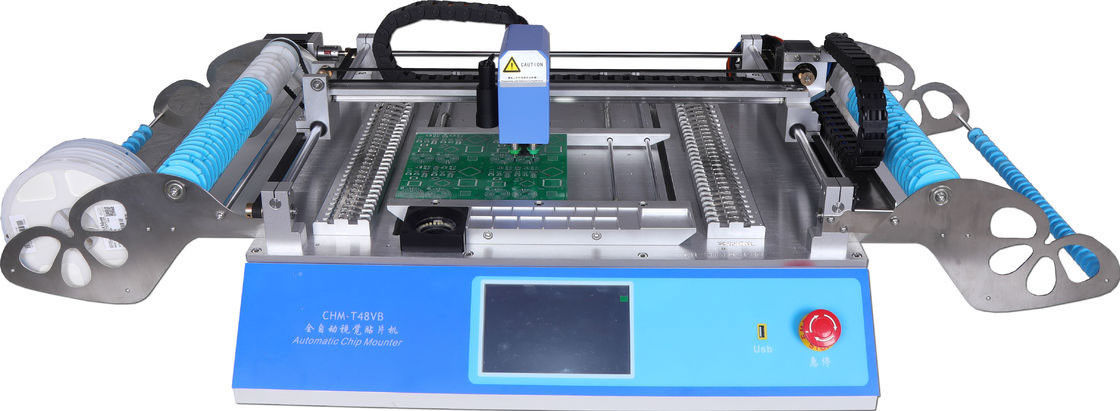

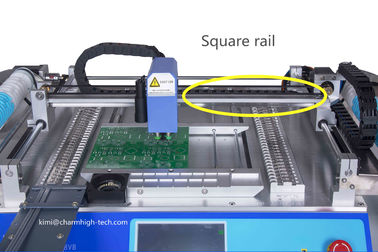

4 Nozzles Dual Cameras Table Top PCB Pick And Place Machine
Description:
| PCB area | 10mm*10mm - 355mm*355mm |
| X Y axis Travel | 420*460mm |
| Z axis moving range | 15mm |
| Placement heads | 2pcs |
| Feeders |
Left 29pcs + right 29pcs 8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs, Front IC stack=14pcs, user-defined IC tray |
| Vision system | Dual cameras (up & down cameras) |
| Drive | Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection | Yes, prevent nozzles breaking |
| Pull pin self-return | Yes |
| Leakage of material detection method | Vacuum detection, vision detection |
| Touch screen | 7”industry touch screen |
| Main board | Independent research industry main board |
| System | Embedded Linux system |
| Mounting speed | 5000cph (vision off); 3000cph (vision on) |
| Mounting precision | ±0.025mm |
| Components | 0402-5050,SOP,QFN (tape width: 8MM,12MM,16MM,24MM) |
| Machine dimension | L 960mm* W 705mm* H 335mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | No need |
| Voltage | 220V (110V), 50Hz |
| Net weight | 75kg |
| Gross weight | 86kg / 116*81*52cm ---- wooden packing |
Competitive Advantage:
1. Convenient software, Embedded Linux System of the machine, very stable industry main board, independent operation, no need external computer, operation more easy and convenient.
2. Top and bottom two cameras CCD system correct the position of each components very accurate, especially for IC (max 22*22mm).
3. Machine support all different kinds of components, from 0402, 0603- QFN, as well as cut tape, tube IC, or bulk IC. Machine can place multi kinds of PCB.
4. It has flexible PCB clamping fixture, and it has custom IC tray, front bulk IC feeder, very convenient.
5. The vision also can second correction machine origin point, make sure origin point correct.
6. 2 heads/ 4 heads with high precise Juki Nozzles with magnet, no need to disassemble with wrench, nozzles can rotate angle -180 degree~ +180 degree. Placing height is adjustable. 4 serials machine max components height is 5mm and 5 serails machine max height is 10mm.
7. 4 serails machine's pull pin automatically return to avoid nozzles broken, pull pin not be stuck. 5 serial's machine using Yamaha pneumatic feeder auto feeding, more faster speed.
8. Z axis detection, placement head can auto detect the height and angle, auto back to origin to prevent any broke.
9. Closed-loop control, X,Y Axis with encoder, motor never lose steps.
10. PCB calibrate by two vision cameras (machine will auto find 2 points), amend the offset of PCB. Only calirbate 2 points, rest components will auto correction, calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.
11. Comes with vacuum detection, if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
12. Comes with vision detection, camera will auto correct component angle and place onto PCB board in right place. If heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop.
13. If lack material it will automatic detection, then alarm; after supply material, then continue working, no need to re-start.
14. Support any number of PCB batch.
15. If no PCB file, or don’t use software load out work file, you can create a new file to program.
16. Comes with convert tool (PC version), edit work file in computer and load work file into machine by USB port, quick and convenient.
17. Support single step.
