| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Warranty: | 1 YEAR | Placement Speed: | 52000CPH |
|---|---|---|---|
| Dimension Of PCB: | 60*65~400*350mm | Mounting Head Number: | 20 |
| Placement Accuracy: | ±0.05mm | The Thickness Of PCB: | 0.5-4mm |
| Feeder Lanes: | 48 | Picking Way: | Picking At The Same Time |
| Machine Weight: | 1500kg | Machine Size(L*W*H): | 1790*1370*1500mm |
| High Light: | 52000CPH PCB Assembly Machine,1500kg PCB Pick And Place Machine,52000CPH PCB Pick And Place Machine |
||

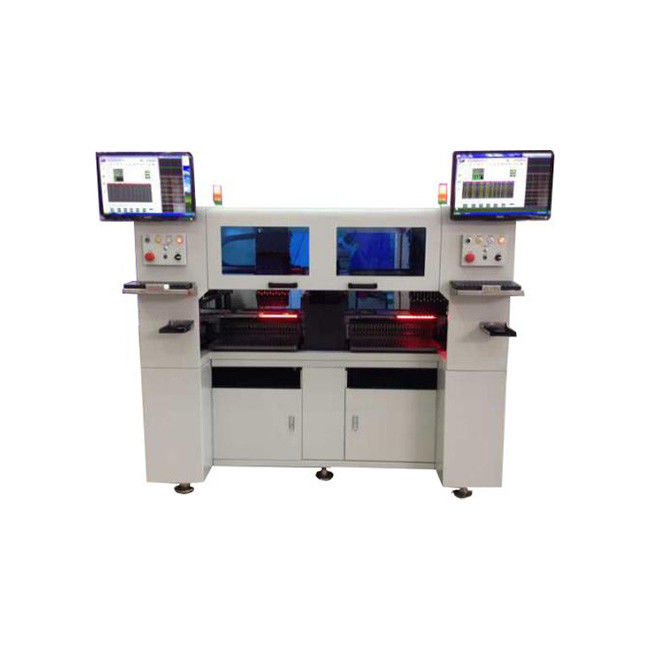

LED Lamp 52000CPH 20 Heads PCB Pick And Place Machine
Technical Specifications:
|
Placement Speed |
52000CPH |
|
Placement Accuracy |
±0.05mm |
|
Machine Size(L×W×H) |
1790×1370×1500mm |
|
Machine Weight |
1500kg |
|
Dimension of PCB |
60×65~400×350mm |
|
The thickness of PCB |
0.5-4mm |
|
Feeder lanes |
48 |
|
Mounting Head Number |
20 |
|
The Range of Components |
0402(electric feeder)~20×20mm IC(SOT,SOP,QFP ect) |
|
Position Way |
Image recognition+Algorithm Compensation |
|
Picking Way |
Picking at the same time |
|
Electronic Parameter |
Simple -Phase 220V AC 50HZ3.5KVA |
|
Air Source Requirement |
Dry air 0.45Mpa~0.6Mpa 200L/min |
Functions:

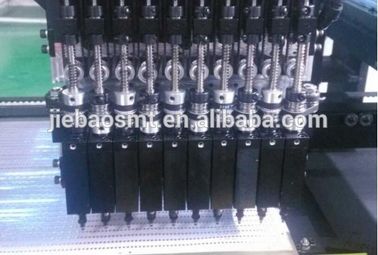

1. Two heads stick parts and two transmission system in turn incessantly to make the efficiency is higher.
2. Optical image recognition, adjusting the components on the flying process, identifying the mark Automatically; patent- Mathematical operation model, accurate posting.
3. Digital test pressure, automatically process and alarm when it didn't pick the components successfully
4. Three-sector on transmission system, reduce the time for delivering the boards

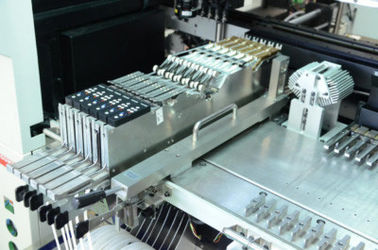

5. Fitted with 48 feeder lanes
6. All of the motors are Japanese Brand, the spindle is Panasonic A5 servo motor
7. Fixed cameras use high-pixel and high-definition industrial cameras which imported from Germany.
