| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Max Chip Speed: | 12000Pcs/h | Compressed Air: | 0.5-0.6Mpa |
|---|---|---|---|
| Positioning Accuracy: | 0.01mm | Feeders: | 60 (before 24 After 36) |
| Weight: | 450Kg | Color: | White |
| Dimensions: | 1395 * 1180 * 1376mm | Open Cover Alarm: | Slow Down Or Down |
| Rail Adjustment Mode: | Manual + Automatic | Max PCB Area: | 600*430mm |
| Nozzle Buffer Range: | 5mm | Trays: | Support 12 Groups |
| High Light: | 1395*1180*1376mm PCB Assembly Machine,5mm PCB Assembly Machine,5mm PCB Component Mounting Machine |
||

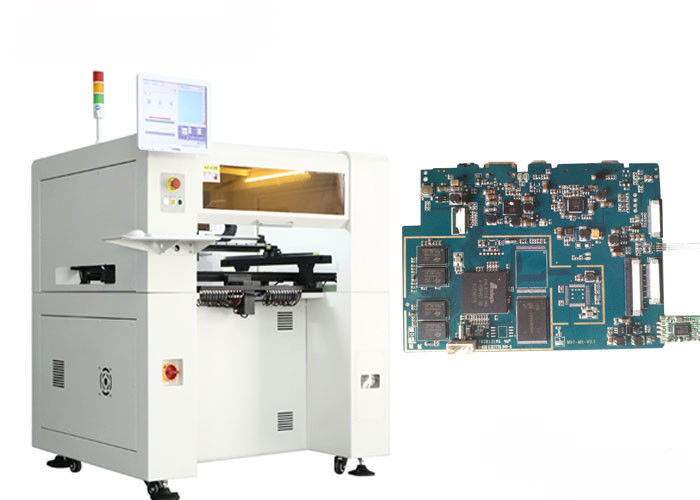

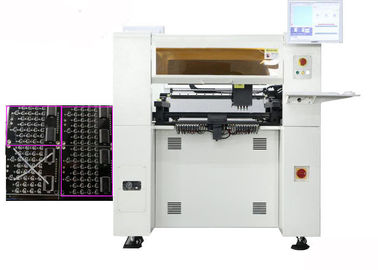

1395*1180*1376mm Servo Motor 60 Feeders PCB Assembly Machine
Specification:
|
Feeders |
60 (before 24 after 36) |
Trays |
Support 12 groups |
||
|
Placement head |
6(without changing the nozzle) |
Average power |
600W |
||
|
Positioning accuracy |
0.01mm |
Nozzle buffer range |
5mm |
||
|
Power |
220V, 50Hz |
Compressed air |
0.5-0.6Mpa |
||
|
Drive motor |
Matsushita servo motor |
Max PCB area |
600*430mm |
||
|
XY Max movement range |
700*619mm |
||||
|
Z Axis movement range |
20mm |
||||
|
Belt Feeder |
8,12,16,24 32mm Feida, shock Feida XY Transmission: Imported TBI high-precision ball screw + imported TBI heavy duty linear guide. |
||||
|
Max chip speed |
12000Pcs/h |
||||
|
Into the board way |
Three-stage into the board from left to right automatic connection (into the board to be board, board waiting board) automatic PCB transfer positioning |
||||
|
XYZ Drive rail |
TBI high precision heavy linear guide |
||||
|
Motion drive system |
Panasonic high-speed DSP-driven |
||||
|
Nozzle vacuum source |
High-speed vacuum generator with vacuum breaker |
||||
|
Operating system |
Based on the Windows operating system, Kay Yang technology company independently developed automatic placement machine operating system. |
||||
|
Component angle |
0-360 ° Any angle, synchronous rotation in motion |
||||
|
X/Y Operation Mode |
Smart curve acceleration and deceleration linear linkage |
||||
|
Into the board way |
Single-stage automatic connection from left to right, automatic PCB transfer positioning. |
||||
|
Visual display |
2 Industrial control display ratio 4: 3 resolution of 1024x760 |
||||
|
Programming |
peer-to-peer programming,visual programming,PCB file coordinate import |
||||
|
Identify the number of cameras |
a Mark recognition camera, six simultaneous high-speed recognition camera, a 5 million pixel high-precision recognition camera. |
||||
|
Rail adjustment mode |
Manual + automatic |
||||
|
Open cover alarm |
Slow down or down |
||||
|
Placement optimization |
the program automatically optimize the placement completed to continue production without waiting for a reset. |
||||
|
Mount mode |
Manual semi-automatic fully automatic |
||||
|
Operation window |
Dual display before and after the operation more user-friendly design. |
||||
|
Automatic connection |
Automatically connected to the front and rear band signal equipment. |
||||
|
Shortcut button |
Offline reset automatic operation to clear the alarm. |
||||
|
Applicable Mounting Range |
Suitable for 0402, 0603, 0805, 1206, LED lamp bead, diode, triode, SOT, QFP, BGA with pin pitch greater than 0.3mm in 45 * 45mm range. |
||||
|
Weight |
450Kg |
Dimensions |
1395 * 1180 * 1376mm |
||
Features:
High precision equipment, the machine is equipped with eight cameras, a Mark, a high-precision camera, six high-speed recognition camera can effectively mount 0402-5050 RCA, two transistors, SOP, QFP-256 chip, BGA and other sizes 45mm * 45mm size recognition of components within the placement.
XY drive using imported high precision grinding ball screw + imported heavy linear guide, fast positioning, low noise, high precision.
Stability, using Japan Matsushita servo motor and drive, TBI precision linear guide, Japan vacuum generator, JUKI high-precision nozzle, automatic feeding integrated system high configuration PC industrial computer, effectively protect the machine's long-term operation of the stability.
Three-stage transmission from left to right automatic connection (the first section is responsible for waiting for the board, the second section is responsible for affixed to the board. Out of the machine into the reflow) effectively save the pass board time, higher efficiency.
