| Compressed Air: | 0.5-0.6Mpa | Positioning Accuracy: | 0.01mm |
|---|---|---|---|
| Feeders: | 46(Front 20,rear 26) | Max Mounting Speed: | 8000CPH |
| Power Supply: | 220V,50Hz | Z Axis Max Movement Range: | 20mm |
| Product Weight: | 450Kgs | Average Power: | 600W |
| Max Circuit Board Area: | 480*300mm | Dimensions: | 1095*1165*1400mm |
| High Light: | 600W PCB Pick And Place Machine,600W Pick And Place Soldering Machine,8000CPH PCB Pick And Place Machine |
||

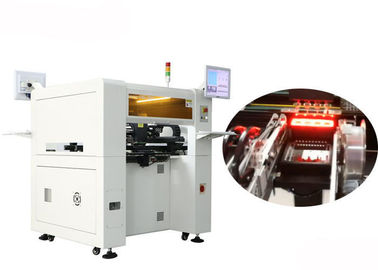

6 Cameras 46 Feeders High Speed PCB Pick And Place Machine
Features:
High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.
Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.
Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

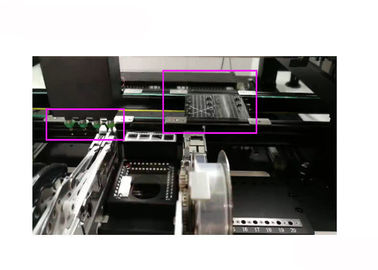

High degree of automation: Equipped with precise transmission guide, automatically input boards and output boards connecting to inspection conveyor after mounting. No need manpower, greatly improving efficiency.
Specification:
| Feeder No. | 46(Front 20,rear 26) | Product Weight | 450Kgs |
| Mounting Heads | 4(No need to change Nozzle) | XYZ Drive Guide Rail | TBI High-precision heavy-duty straight-line guide rail |
| Average Power | 600W | ||
| Positioning Accuracy | 0.01mm | Motion Drive System | Panasonic High Speed DPS Driver |
| Nozzle Buffering Range | 5.0mm | Operating System | Support Windows XP,Win7 Operating System |
| Power Supply | 220V,50Hz | Component Angle | 0~360°,Synchronized rotation in motion |
| Compressed Air | 0.5-0.6Mpa | X/Y Running Mode | Intelligent Curve Acceleration and Deceleration Linear Linkage |
| Driving Motor | Panasonic Servo Motor | ||
| Recognition Method’ | 4 Heads Recognize Synchronously | Placement Mode | Manual,Semi-automatic,Full-automatic |
| Nozzle Vacuum Source | High-speed on-off vacuum generator with vacuum damage | Alarm when open the cover | Reducing speed or out of service |
| XY Max Movement Range | 556*680mm | Rail Guide Adjusting Method | Manual+Automatic |
| Max Circuit Board Area | 480*300mm | Board Input Method | Automatically connect loader and position PCB transmission |
| Z Axis Max Movement Range | 20mm | Visual Display | 15”industrial control display ratio 4:3,resolution 1024*768 |
| Belt Type Feeder | 8/12/16/24mm feeders stick feeder | Programming Mode | Point to Point,Visual Programming,PCB file coordinates inputting,etc |
| Max Mounting Speed | 8000CPH | ||
| Average Mounting Speed | 6000CPH(Visual) | Recognition Camera No | 1 Mark recognition camera,4 high speed recognition camera,1 high-precision recognition camera |
| Dimensions | 1095*1165*1400mm |
Application:
Suitable for 0402,0603,0805,1206,LED lamp beads,diodes,transistors,SOT,45*45mm range pin pitch ≥ 0.03mm QFP,BZGA etc.
