Automatic 28000CPH LED PCB Component Mounting Machine

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE , ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Standard Export Packing
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Mount Accuracy:	±0.05mm	Power Supply:	220V,50Hz
Max Circuit Board Area:	1200×300mm	Max Mounting Speed:	28000cph
Compressed Air:	0.5-0.6Mpa	Position Method:	Visual Position
Weight:	750Kg	Color:	White
High Light:	28000CPH PCB Component Mounting Machine , 28000CPH Pick And Place Soldering Machine , 0.6Mpa PCB Component Mounting Machine

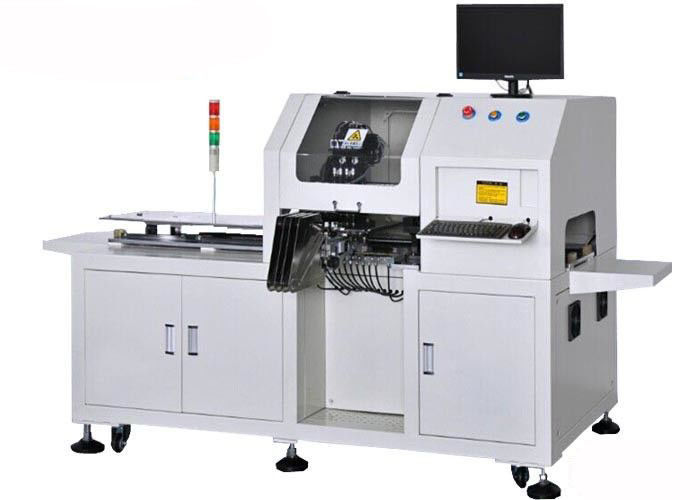

Automatic 28000CPH LED PCB Component Mounting Machine

Specification:

Max circuit board size	1200×300mm
Max moving range	X axis 1210mm, Y axis 330mm
Max moving range of Z axis	10mm
Typical Mounting speed	20000cph
Max mount speed	28000cph
Mount accuracy	±0.05mm
Position method	Visual position
Component available	0603and above SMD component and LED
Programme method	Automatic data import/ video study/ keyboard input
Belt feeder	8mm, 12mm, 16mm and 24mm(OPT)
suction nozzle	JKUI suction nozzle504,505 & 506
Operation system	WINDOWS XP
Compressed air	Vacuum air in machine
Power supply	220V,50Hz, 1.2Kw
Weight	750Kg
Dimension	2000MM(L)930MM(W)1450MM(H)

Features:

The platform transmission uses the imported linear guide rail and lead screw in combination with the Japan original Panasonic servo drive ensuring the high-speed stationarity and control precision of the platform.
The transmission of the X and Y shafts uses the imported high-precision ground lead screws and linear guide rails in combination with the Japan Panasonic servo drive ensuring the high precision and high speed of mounting.
4 sets of high-speed mounting heads work simultaneously. The sucking heads use high-precision durable spline shafts.
Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.
Multi Feeder optional, can meet different kinds of LED mounting.
Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.
Software adopts data system, and store different types of PCB for convenient adjustment, just need to programming one time for new products to use forever.
Platform: Y axis, X axis can be moved manually, speed adjustable, can achieve arbitrary point manual arrived, convenient programming.
LED Pick & Place Machine use imported vacuum detection system, it can check the suction accurately to prevent material leakage and throwing effectively.
Internal negative pressure system: low noise, long service life and vacuum pressure constant.
Standard setting:1 PC,4 mounting heads,12 nozzles.
Optinal :8mm,12mm,16mm 24mm automatic feeder, different nozzles, industrial pump, air compressor .

Application:

LED pick and place machine improves the precision and efficiency of mount, professional for electronic factory,LED surface mount manufactory.LED Pick and Place Machine is stable and easy to operate.

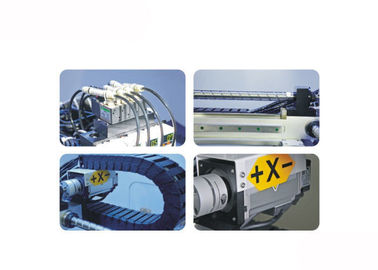

Mounting Heads:

Automatic 28000CPH LED PCB Component Mounting Machine 0
