| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Local Service Location: | United States, India, Mexico, Thailand | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 YEAR | Core Components: | PLC |
| Warranty: | 1 YEAR | After-sales Service Provided: | Video Technical Support, Field Maintenance And Repair Service, Online Support |
| Usage: | PCB Mounting | Components: | (01005") 0402 Chip *5 To L 12 Mm W 12 Mm T 6.5 Mm |
| PCB Dimension (mm): | L 50 X W 50 To L 510 X W 460 | High-speed Head: | 12 Nozzles |
| Max.speed: | 100000cph /75 000 Cph ( Chip) | Component Dimensions (mm): | (01005") 0402 Chip *5 To L 12 Mm W 12 Mm T 6.5 Mm |
| Dimensions (mm): | W 2 350 X D 2 290 *2 X H 1 430 *3 | Mass: | *4 3 400 Kg |

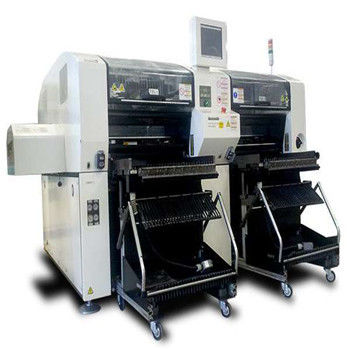

| High Light: | 510*460mm Chip Mounting Machine,510*460mm smt chip mounter,100000cph Chip Mounting Machine |
||
| PCB dimensions (mm) | L 50 x W 50 to L 510 x W 460 |
| High-speed head | 12 nozzles |
| Max.speed | 100 000 cph (0.036 s/chip <Type A-2>) |
| Placement accuracy | ±40 µm/chip (Cpk1) |
| Component dimensions (mm) | (01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm |
| High-flexibility head | LS 8 nozzles |
| Max.speed | 75 000 cph (0.048 s/chip <Type A-0>) |
| Placement accuracy | ±40 µm/chip, ±35 µm/QFP 24 mm, ±50 µm/QFP <24 mm (Cpk1) |
| Component dimensions (mm) | (01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8 When the generalized Ver.5 is optionally selected (01005”)0402 chip *5 to L 100 mm × W 50 mm × T 15 mm *6 |
| Multi-functional head | 3 nozzles |
| Max.speed | 20 000 cph (0.18 s/QFP <Type B-0>) |
| Placement accuracy | ±35 µm/QFP (Cpk1) |
| PCB exchange time | 0.9 s (Board length:up to 240 mm Under optimum conditions) |
| Electric source | 3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA |
| Pneumatic source *1 | 0.49 MPa, 170 L /min(A.N.R.) |
| Dimensions (mm) | W 2 350 x D 2 290 *2 x H 1 430 *3 |
| Mass *4 | 3 400 kg |
Q1:This is the first time I use this kind of machine, is it easy to operate?
A:There is an English manual or guide video showing how to use the machine.
E-mail /or online service contact are available if you still have questions.
Q2: If machine have any problem after I receive it, how can I do ?
A:Free parts send to you in machine warranty period.
We shall pay the postage If the part is less than 0.5KG .
Q3: If buyers have some special needs or customized requests,how to get it?
A:Please contact us for a negotiation,we will try our best to meet your requests.
Q4:How can I buy this machine from you? ( Very easy and flexible! )
A:We have manufactured lots products every day due to our large numbers of clients.You can message your needs to our service staffs,products will ship within 5 days after your orders have been confirmed.
