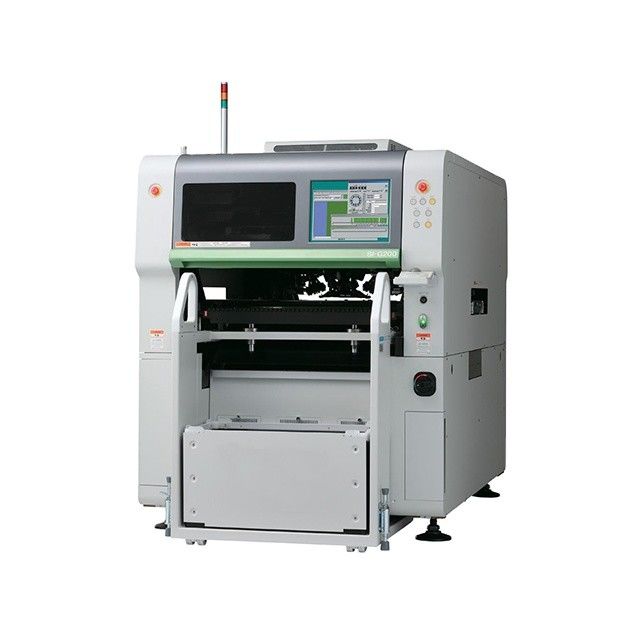

Low Power 1220*1850*1575mm 58 Feeders 75000CPH SMT Chip Mounter

Low Power 1220*1850*1575mm 58 Feeders 75000CPH SMT Chip Mounter

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
    • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE , ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: Standard Export Packing
    Delivery Time: 15-20 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100pcs per month
    Contact Now
    Detailed Product Description
    Condition: New After Warranty Service: Video Technical Support, Online Support
    Local Service Location: None Showroom Location: None
    Video Outgoing-inspection: Provided Machinery Test Report: Provided
    Marketing Type: Ordinary Product Warranty Of Core Components: 1 YEAR
    Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Warranty: 1 YEAR
    Mounting Speed: 75000CPH Componebt Size: 01005-18mm
    Machine Size: 1220*1850*1575mm Machine Weight: 2150kg
    High Light:

    75000CPH Chip Mounter Machine

    ,

    75000CPH smt chip mounter

    ,

    1220*1850*1575mm SMT Chip Mounter

    Low Power 58 Feeders 75000CPH SMT Chip Mounter


    Feature

    1. The world's original rotating planetary mounting head, 24 nozzles, fast speed, actual output up to: 75,000CPH / h.
    2. High-speed placement machine suitable for mounting 1.2-meter LED lamp beads, LED lamp bead patch artifact.
    3. Small footprint, low power and gas consumption, low noise.
    4. CCD camera recognizes parts, unique image recognition system, accurate positioning, high placement accuracy.
    5. Original imported and reliable quality.

    Description

    Planet mount head

    1. Developed a patented planetary mounting head to achieve two-way free rotation to achieve the best state of the patch, and the speed can reach 75000CPH.
    2. Adopt CCD camera to identify parts and a unique image recognition system, so that placement accuracy can reach ± 20um.

    Part thickness recognition camera

    This mounter is achieved high placement accuracy and performs part recognition while moving the visual placement head quickly.

    Programming software for production product conversion

    Offline programming software, the above DAS is also included. The next production version program can be programmed offline in advance, greatly reducing the time to switch production versions.

    No need to stop and change the material rack

    Equipped with 116 electric material racks, which can be connected to the material belt to realize the non-stop material change program, greatly reducing the production time.

    Parameters

    mounting speed
    75000CPH
    component size
    01005-18mm
    mounting accurancy
    ±20μm@μ+3σ/Chip
    PCBSize
    50mm x 50mm—460mm x 410mm (signal track rail)
    vision system
    Flying HD visual recognition system
    mounting head
    24 Nozzles / 2 Mounting head(12 Nozzles/1Mounting head)
    component thickness
    0402(01005)-12mm
    PCB thickness
    0.5mm-3.0mm
    feeders
    58 behind /58 front
    voltage
    AC 3 phase 200V±10%,50/60HZ
     power
    2.5-5.0KVA
    air pressure
    0.49Mpa 0.5L/min
    machine size
    1.220(W)mm*1850(D)mm*1575(H)mm( Without signal light height)
    machine weight
    2150kg
    work environment
    temperature15℃～30℃ ； humidity 30%～70%(without water droplets)
    work noise
    35-65 decibel
    correction model
    Machine vision system, multi-point mark vision correction.
    driver system
    AC servo, AC motor
    data transmit
    USB interface input (EXCEL document format),
    operation system
    Chinese, English, Japanese operation interface (WINDOWS system control platform)
    control model
    automatic
