| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New | After Warranty Service: | Video Technical Support, Online Support |
|---|---|---|---|
| Local Service Location: | None | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Driver System: | AC Servo, AC Motor |
| Work Noise: | 35-65 Decibel | Speed: | 21000CPH/55000CPH |
| Core Components: | PLC, Engine, Bearing | Warranty: | 2 Years |
| PCB Thickness: | 0.38~4.2mm | ||
| High Light: | 21000CPH Chip Mounter Machine,21000CPH Chip Mounting Machine,55000CPH Chip Mounting Machine |
||
Product description

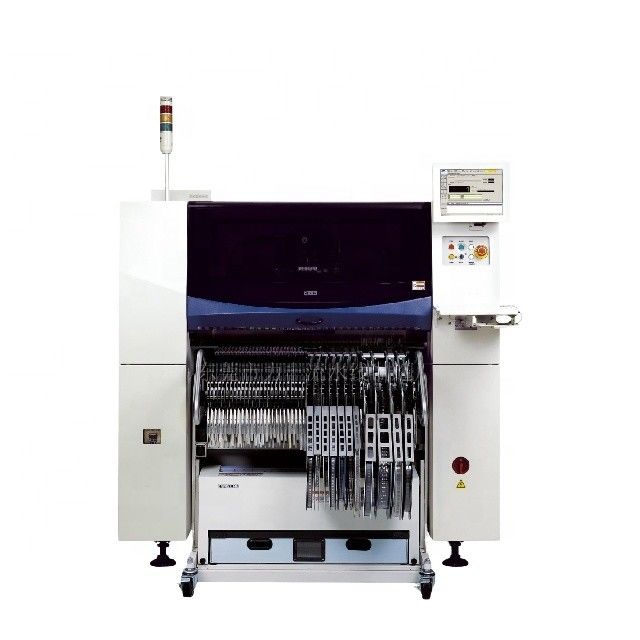

Chip Mounting Machine is for led, Lens, capacitors, resistors, IC, Shaped components, etc. Apply to Led lamp manufacturer, PCB production line etc . Chip Mounting Machine is a single module single system multi-functional SMT pick and place machine. Vision for the flight identification, mark correction. And it’s identified the correct position by camera. So it’s high precision and good stability.
|
Model
|
SM421
|
SM431
|
|
speed
|
Chip 1608 21,000CPH ；SOP 15,000 CPH ；QFP 5,500 CPH
|
55000CPH(best performance)
|
|
component size
|
0402mm Chip to □14mm
|
0402mm Chip to □12mm
|
|
mounting accurancy
|
±50μm@μ+3σ/Chip；±30μm@μ+3σ/QFP
|
±40μm
|
|
PCB size
|
min:50(L)x40(W)
max:(single)460(L)x400(W) ；510(L)x460(W)(option)；
610(L)x510(W)(option)；740(L)x460(W)(option)
|
L50 x W40 mm ~ L460 x W460 mm
|
|
vision system
|
Flight vision+Fixed vision
(Only one working field device can be installed when installing a large conveyor)
|
Hight speed flight image recognition system
|
|
mounting head
|
6 spindles x 1 cantilever
|
double arms with 16 mounting heads
|
|
component thickness
|
H=12mm(Standard Flying camera) H=15mm(Standard Fixed camera)6 spindles x 1 cantilever
|
H7mm以below
|
|
PCB thickness
|
0.38~4.2mm
|
0.38-4.2
|
|
feeders
|
120ea/112ea (feeding Quantity)
|
Avalibale with 48 of 8mm Feeding Machine
|
|
voltage
|
AC 220/208/220/240/380/415V(50/60Hz,three phase)
|
AC200/208/220/240/380/415V(50-60HZ,3Phase)
|
|
power
|
5-7kg/㎡,260 NI/MIN
|
MAX 5.0KVA
|
|
air pressure
|
0.5~0.7MPa(5.1~7.1kgf/cm2),300NL/min
|
0.5-0.7Mpa(5.1~7.1kgf/cm²)
|
|
machine size
|
1650(L) x 1,680(D) x 1,485(H)
|
1,240mm(L) x 1,660mm(D) x 1,420mm(H)
|
|
machine weight
|
1680kg left right
|
around 1500KG
|
|
work environment
|
5～25 degree
|
Operating temperature :+10~+35℃,recommend:24±4℃,humidity:RH30%~80%
|
|
work noise
|
35-65 decibel
|
35-65 decibel
|
|
correction model
|
Machine vision system, multi-point mark vision correction.
|
Machine vision system, multi-point mark vision correction.
|
|
driver system
|
AC servo, AC motor
|
AC servo, AC motor
|
|
data transmit
|
USB interface input (EXCEL document format),
|
USB interface input (EXCEL document format),
|
|
operation system
|
Chinese, English, Korean operation interface (WINDOWS system control platform)
|
Chinese, English, Korean operation interface (WINDOWS system control platform)
|
|
control model
|
automatic
|
automatic
|
Our services
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After buying machine
1) 1 year free warranty
2) Visit customers regularly and gather information.
3) Provide latest information about technology and equipment.
Ship and package
1) shipping: Within 30 days after payment
2) Packaging: Standard export package or customized package
