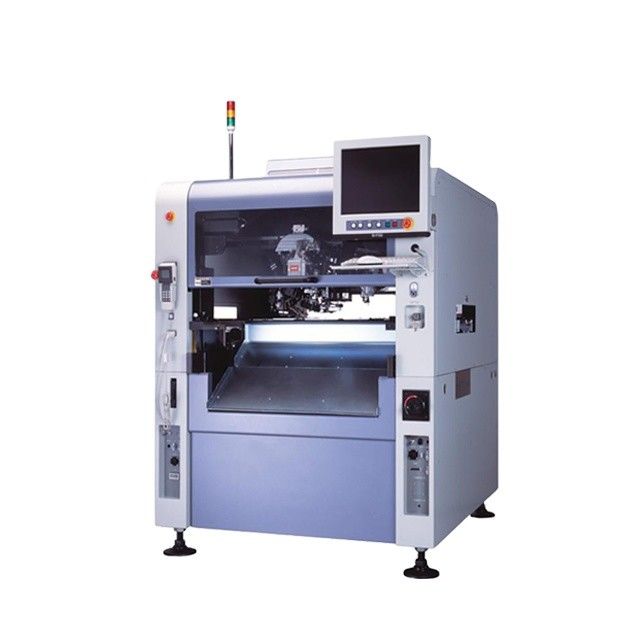

Automatic 12 Nozzles 36000CPH Chip Mounter Machine For LED Beads
Product Details:
| Place of Origin: |
China |
| Brand Name: |
OEM |
| Certification: |
CE , ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 unit |
| Price: |
Negotiable |
| Packaging Details: |
Standard Export Packing |
| Delivery Time: |
15-20 days |
| Payment Terms: |
L/C, T/T, Western Union, Paypal |
| Supply Ability: |
100pcs per month |
Contact Now
Detailed Product Description
| Condition: |
New |
After Warranty Service: |
Video Technical Support, Online Support |
| Local Service Location: |
None |
Showroom Location: |
None |
| Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
1 YEAR |
| Core Components: |
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
Mounting Accurancy: |
±30μm@μ |
| Element Thickness: |
Max:8mm |
PCB Size: |
50mm*50mm-360mm*1200mm |
| High Light: |
36000CPH Chip Mounter Machine, 12 Nozzles Chip Mounter Machine, 12 Nozzles smt placement machine |
Automatic 12 Nozzles Chip Mounter Machine For LED Beads
Feature
1. The world's original rotating planet mount head, 12 suction nozzles, fast speed, actual output up to: 25,900CPH/h.
2. It is suitable for the high speed mounting machine with 1.2m LED beads. LED lamp bead patch artifact.
3. Small floor area, less electricity and gas consumption, low noise.
4. CCD camera recognition parts, unique image recognition system, accurate positioning and high mounting accuracy.
5. Original import, reliable quality.
Product Paramenters
| Model |
SI-F130 |
SI-F130AI |
SI-F130WK |
| mounting speed |
30000CPH/h |
36000CPH/h |
40000CPH/h |
| mounting accurancy |
±30μm@μ |
±30μm@μ |
±30μm@μ |
| element size |
0402～18mm |
0201～18mm |
0201～18mm |
| element thickness |
Max:8mm |
Max:8mm |
Max:8mm |
| PCB size |
50mm*50mm-360mm*1200mm |
50mm*50mm-360mm*1200mm |
50mm*50mm-360mm*1200mm |
| PCB thickness |
0.5mm to 2.6mm |
0.5mm to 2.6mm |
0.5mm to 2.6mm |
| vision system |
Flying HD visual recognition system |
Flying HD visual recognition system |
Flying HD visual recognition system |
| mounting head |
12Nozzles / 45° Mounting head |
12Nozzles / 45° Mounting head |
12Nozzles / 45° Mounting head |
| feeders |
48behind /48 front |
48 behind /48 front |
48behind /48 front |
| machine size |
1220mm*1400mm*1545mm |
1220mm*1400mm*1545mm |
1220mm*1400mm*1545mm |
| machine weight |
1560KG |
1560KG |
1560KG |
| voltage |
AC 3 phase 200V±10%,50/60HZ |
AC 3 phase 200V±10%,50/60HZ |
AC 3 phase 200V±10%,50/60HZ |
| power |
5.0KVA |
5.0KVA |
5.0KVA |
| air pressure |
0.49MPA 0.5L/min |
0.49MPA 0.5L/min |
0.49MPA 0.5L/min |
| work environment |
temperature15℃～30℃ ； humidity 30%～70% |
temperature15℃～30℃ ； humidity 30%～70% |
temperature15℃～30℃ ； humidity 30%～70% |
| work noise |
35-65 decibel |
35-65 decibel |
35-65 decibel |
| correction model |
Machine vision system, multi-point mark vision correction. |
Machine vision system, multi-point mark vision correction. |
Machine vision system, multi-point mark vision correction. |
| driver system |
AC servo, AC motor |
AC servo, AC motor |
AC servo, AC motor |
| operation system |
Chinese, English, Japanese operation interface (WINDOWS system control platform) |
| control model |
automatic |
automatic |
automatic |
