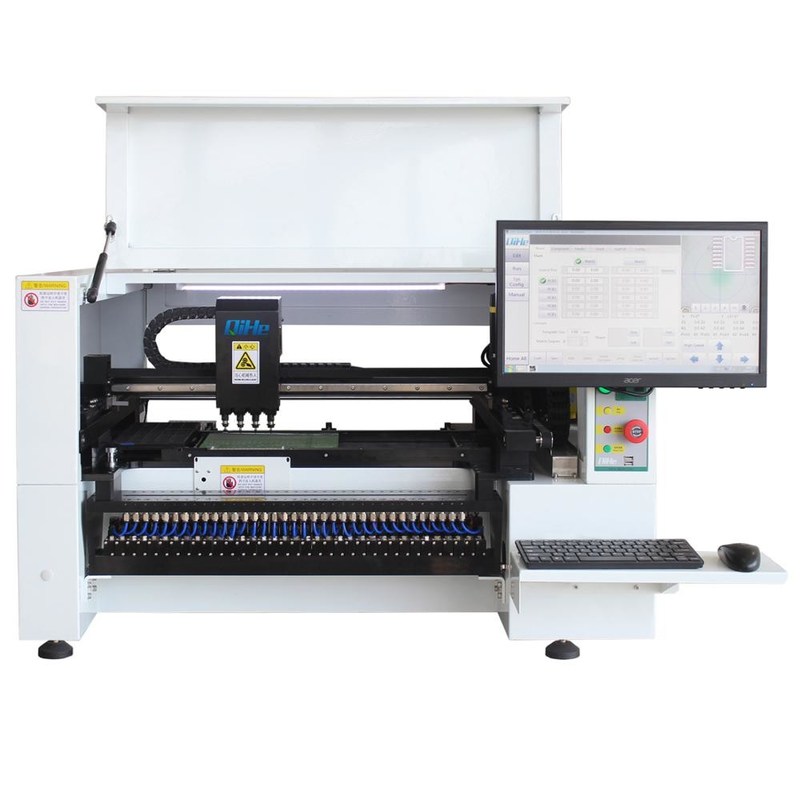

64 Feeder Slots 4 Nozzles Benchtop Chip Mounting Machine

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE , ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Standard Export Packing
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Condition:	New	Warranty:	1 YEAR
After-sales Service Provided:	Online Support	Size:	1060865650mm
Weight:	160kg	Product Name:	Automatic SMD Capacitor Placement Machine
Power Supply:	220V/110V	Application:	SMT Assembly Production Line
Selling Units:	Single Item	Single Package Size :	50X50X50 Cm
Single Gross Weight:	50.000 Kg	Package Type:	Special Wooden Case For Exporting
High Light:	160kg Chip Mounting Machine , 1060865650mm Chip Mounting Machine , 1060865650mm SMT Placement Machine

64 Feeder Slots Four Nozzles Benchtop Chip Mounting Machine

Product Description

Chip Mounting Machine is a high speed pick and place machine for medium production line. Up to 64 feeder slots, it can mount many kinds of component. Multi-Vision System: Total six cameras make placement more accurate. Time saving by the four nozzles are examined over the four cameras at the same time.

Max applicable PCB size		330*580mm
Max xy moving range		585*620mm
Max z moving range		16mm
Placementhead quantity		4
		Vision on: 9000pcs/h
Max mounting capability		Vision off: 7000pcs/h
Feeder Capacity		64 (YAMAHA Feeder is available)
Applicable component		Smallest size: 0402
		Largest size: 16*16mm (Pitch 0.5mm)
		Max height: 5mm
Visual camera		5CCD cameras & 1 HD CCD camera
Power supply		220V/110V
Net weight		160kg
Machine Dimension		1060865650mm
Packing size		0.98CBM

Main Features

1. Vision system: one down-looking camera. Four CCD cameras and one HD camera.
2. Four placement heads can pick up and calibrate components at one time.
3. Up to 64 feeder slots, Yamaha standard feeder is available.
4. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.
5. Video tutorials make you operate machine easily
6. Free to upgrade software and provide technology support for lif
