| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New, Brand-new | After Warranty Service: | Video Technical Support |
|---|---|---|---|
| Local Service Location: | None | Showroom Location: | None |
| Warranty: | 1 YEAR | Name: | Automatic Smt Stencil Printer |
| Application: | SMT PCB Assembly Production Line | Usage: | LED Tube Large Qty Production |
| Item: | LED Solder Machine | Type: | Automatic |
| Package: | Wooden Case | Quality: | 100% Tested |
| Apply To: | SMT Machine /PCB | Delivery: | Fedex |
| High Light: | 320*500mm SMT Stencil Printer,550*650mm SMT Stencil Printer,320*500mm SMT Screen Printing Machine |
||
|

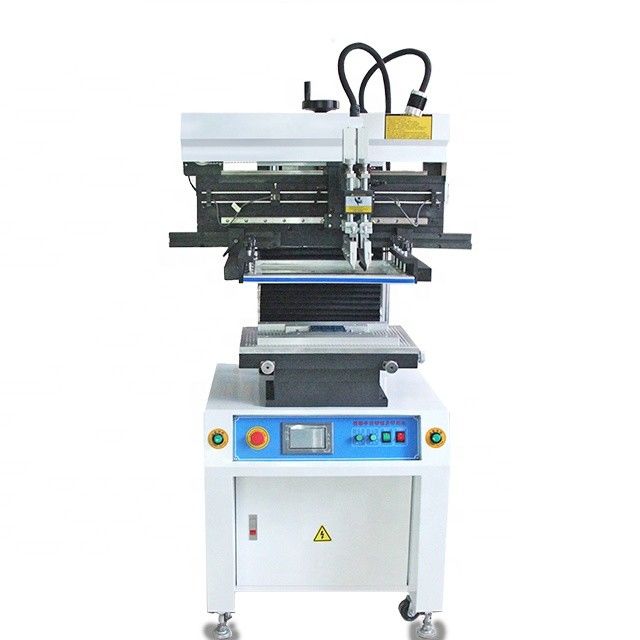

Product Name
|
automatic stencil printer
|
|
Printing table acreage
|
320*500mm
|
|
Fram Size
|
370-470 mm,420*520mm,550*650mm
|
|
Substrate Size
|
320*230mm
|
|
Substrate thickness
|
0.2~2.2mm
|
|
printing precise
|
+/-0.2mm
|
|
Fixation of printing position
|
PCB outer or pin positioning
|
|
original place
|
made in china
|
|
quanlity
|
top
|
Feature:
1. Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2. Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3. Block can be adjusted before and after the blade, to choose the right printing position.
4. Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5. School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6. Can be set to one-way and two-way, a variety of printing methods.
7. With the automatic counting function to facilitate the production of output statistics.
8. Adjustable blade angle, steel blade, rubber scraper are suitable.
9. Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10. Printing speed display, can be adjusted.
