| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Name: | SMT Stencil Printer | Shipping Term: | DHL Fedex TNT EMS UPS |
|---|---|---|---|
| Warranty: | 1 Year | Applicable Components: | 0402~5050 |
| Type: | Semi-auto | Packaging: | Wooden Box |
| Product Name: | Solder Paste Screen Printer | Port: | Shenzhen Or HK |
| The Minimum Distance: | 0.35mm | ||
| High Light: | 0.35mm SMT Stencil Machine,0.35mm Solder Paste Stencil Printer,320X450mm SMT Stencil Machine |
||

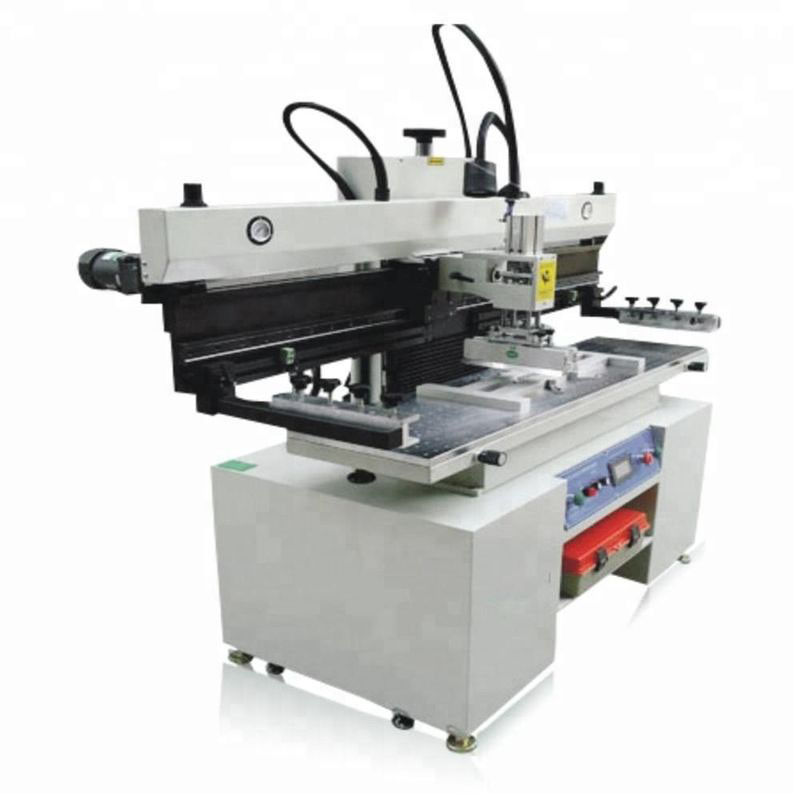

Semi Auto Desktop Solder Paste SMT Stencil Machine
Description
1. Use servo system is convenient location.
2. adopt silver precision guide and Taiwan lh-zd frequency conversion motor to drive scraper seat, insure printingprecision.
3. Printing scraper can upward rotated 45 degrees fixed, facilitate printing sheet and scraper cleaning and replacement.
4. Scraper base can be before and after adjustment, by choosing appropriate printing position.
5. Combined-type printing bedplate with fixed grooves and PIN, installation convenient adjustment, suitable for single and double panel of the printing.
6. School edition way adopts steel nets mobile, and combined with printing (PCB) X, Y, Z). Calibration fine-tuningconveniently.
7.adopt Taiwan PLC and touch screen control VIGOR, simple, convenient and suitable for the man-machine dialogue.
8. Can be set unidirectional and bidirectional, various printing mode.
9. With automatic counting functions, convenient production statistics.
10. Scraper Angle adjustable, steel scraper, rubber spatula are appropriate.
11. Touch screen saver function with time can arbitrarily regulate, protect the touch screen using life.
12. Has wipe nets alarm functions, facilitate punctual scrubbing halftone, ensure printing quality.
13. Adopt unique program design, printing scraper seat convenient adjustment.
14. Printing machine speed showed that can be arbitrary regulation.
|
Printing machine size |
320X450mm |
|
Frame size |
370X470mm |
|
Substrate sizes |
250X330mm |
|
Substrate thickness |
0.2-2.Omm |
|
Printing position |
PCB Outer Or Pin Positioning |
|
Bedplate fine-tuning |
Front/back ±10mm R/L ±10mm |
|
Printing accuracy |
±0.05mm |
|
Repeat accuracy |
±0.02mm |
|
The minimum distance |
0.35mm |
|
Use of air compressor |
4-6kgf/cm2 |
|
Use power |
Single 220V,50/60Hz,100W |
|
Machine Size |
L900-? XW900XHl650mm |
|
Machine weighs |
(about)250kgs |
