Beijing Silk Road Enterprise Management Services Co.,LTD
Place of Origin: | China |
Brand Name: | OEM |
Certification: | CE , ISO |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Packing |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Supply Ability: | 100pcs per month |
Plate Type: | Screen Printer | Condition: | New, New |
---|---|---|---|
Usage: | Pcb Board Printer | Automatic Grade: | Manual |
Color & Page: | Single Color | Dimensions(L*W*H): | 660*470*245mm, 660*470*245mm |
Weight: | 14Kg | Key Selling Points: | Easy To Operate |
Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 YEAR |
Core Components: | Bearing, PLC, Engine | After-sales Service Provided: | Overseas Service Center Available |
Item: | Solder Paste Stencil | Application: | Screen Printing |
PCB Thickness: | 0.5-10mm | Max PCB Size: | 280*380mm |
Positioning Pin Size: | 1mm/1.5mm/2.0mm/2.5mm/3mm | Frame Size: | 500*400mm |
High Light: | 14Kg PCB Stencil Printer,14Kg SMT Screen Printing Machine,280*380mm SMT Screen Printing Machine |
Items |

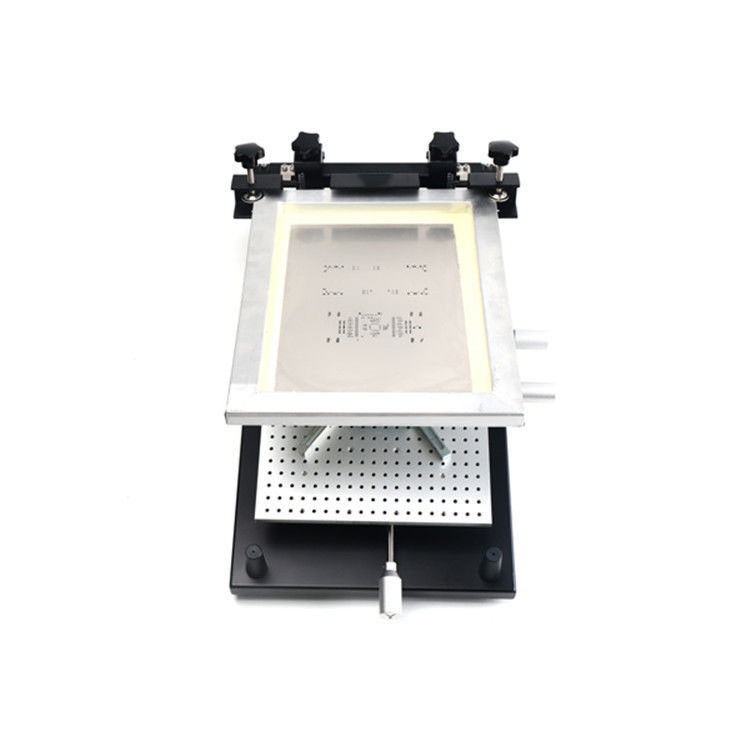

solder paste printer with frame version |
Dimensions |
660×470×245(mm) |
Platform height |
190(mm) |
Max PCB Size |
280×380(mm) |
Printing speed |
Labor control |
PCB Thickness |
0.5~10(mm) |
Repeatability |
±0.01mm |
Positioning mode |
Outside/Reference hole |
Frame Size |
500*400mm |
Fine Adjustment Range |
Z-axis ±15mm X-axis ±15mm Y-axis ±15mm |
Net Weight |
14Kg |
Features
1. High flexibility
Four adjustable tools help to control X, Y, Z(thickness of solder paste) and rotation(15 degrees) of board to achieve the best printing effect.
2. Stable Performance
Easy to fix both single and double sided boards by support pins and bars on multi-holes platform.
3. Easy to Operate
After fix the position of boards and stencil, it ensures high printing precision with repeatability.
