| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
|---|---|---|---|
| Local Service Location: | None | Showroom Location: | None |
| Warranty: | 1 YEAR, One Year | Usage: | Printer Machine |
| Weight: | 23kg | Dimensions: | 580×320×260(mm) |
| PCB Thickness: | 0~100(mm) | Platform Height: | 180(mm) |
| High Light: | 580×320×260mm PCB Stencil Printer,580×320×260mm SMT Stencil Printer,23kg SMT Stencil Printer |
||

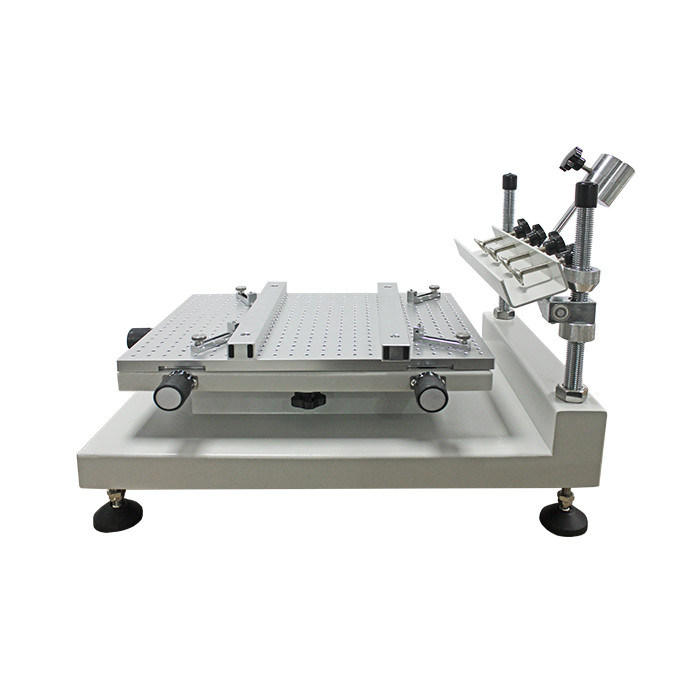

High Precision 580×320×260mm Silk Screen SMT Stencil Printer
Features
1. The same platform as printer can be selectable,easy to locate both single and double sides of PCB board;
2. high flexibility ensure high printing precision;
3. The steel stencil can be rotated 30 degrees at most,and the precision can be kept all the way when repeat works, can be comparable with automatic machine;
4. Using the way of steel stencil movement to adjust the best position, combining with the fine adjustment of Xaxis Y axis to correct, convenient and efficient;
5. The frame made of thickened sheetmetal,finest material,good quality with outstandingdurability;
Technical parameters
|
Dimensions |
580×320×260(mm) |
|
Platform Size |
300×400(mm) |
|
PCB Size |
250×300(mm) |
|
Template Size |
370×470(mm) |
|
Printing speed |
Labor control |
|
PCB Thickness |
0~100(mm) |
|
PCB Tuning range |
Front/ Side +10mm |
|
Platform height |
180(mm) |
|
Repeatability |
±0.01mm |
|
Positioning mode |
Outside/Reference hole |
|
Fine Adjustment Range |
Z-axis ±45mm X-axis ±35mm Y-axis ±45mm |
|
Weight |
14Kg |
