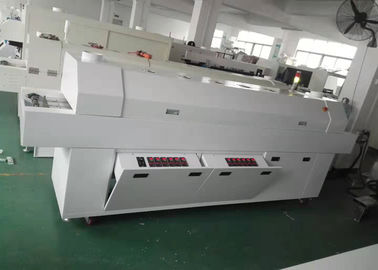

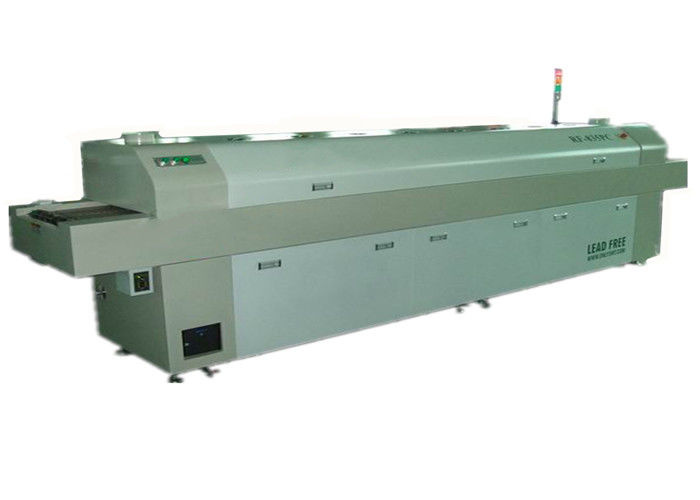

Hot Air Small Circulation 6 Zones 5KW SMT Reflow Oven For LED Tube

Hot Air Small Circulation 6 Zones SMT Reflow Oven For LED Tube

Feature:

1. Heating system with high efficiency and energy saving of Swedish nickel flipping heat pipe, radiation power peak wavelength 4 um, cooperate with curved reflector, high thermal efficiency, fast temperature rise, special forced hot air circulation system structure, make the PCB and components heated evenly, completely eliminate the "shadow effect".

2. Adopts the solid state relay Taiwan yangming's large current output, safe, reliable, combined with the temperature controller of fuzzy control, has been monitoring the change of ambient temperature and heat value, with the minimum pulse control heating device, fast response, guarantee + / - 1 ℃, temperature control precision machine error within the plus or minus 2 ℃, the temperature distribution within the length direction of the temperature distribution in the IPC standards.

3. Special numerical control instrument and precision controller and PID intelligent computing, by intelligent PID arithmetic, automatic control calorific value, the fuzzy control function increase overshoot and inhibiting function and fast response to external heat change function, the fastest speed response to the change of the external heat and temperature through the internal control to ensure more balanced.

4. Heat pipe module design, convenient maintenance, dismantling.

5. Adopt Taiwan Sanyue high temperature and high speed motors, wind smoothly, little vibration, low noise.

6. The whole furnace can be opened, is easy for stove cleaning.

7. Temperature error, fault diagnosis, sound and light alarm

8. Power heat up quickly, from room temperature to constant temperature of about 15 minutes.

9. Special SSR radiator, radiator efficiency is greatly improved, prolong its service life effectively

10. All adopt the imported components, to ensure the high reliability of the whole system.

11. Reliable and stable transmission system

12. The Taiwan STK stepless variable speed motor drive system, electric belt line speed stepless speed regulator, cooperate 1:15 0 STK turbine reducer, smooth operation, the speed is 200-2000mm/min stepless adjustable, and have the accurate digital linear velocity of the instructions.

13. Adopt independent wheel structure and flat support, combined with form a complete set of stainless steel mesh belt, smooth operation, speed precision can be up to + 20 mm/min.

14. Special stainless steel mesh belt b word, durable wear resistant.Use for a long time variant not easily.

Product parameters:
