| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Conveyor: | Mesh Belt And Chain Conveyor | Usage: | SMT ; LED ; SMD ; And Son On |
|---|---|---|---|
| Max PCB Size Of Single Lane: | 50-500mm | Control: | PID + PC |
| Name: | Furnace ; Welding Machine ; Heating Machine | Max PCB Size Of Dual Lane: | 300mm |
| Application: | PCB Assembly | Heating Method: | Up Hot Air Bottom Hot Air |
| Heating Zone: | 10 | Other: | Accept Customize |
| High Light: | 2800KG Surface Mount Oven,300mm Surface Mount Oven,2800KG Reflow Soldering Machine |
||

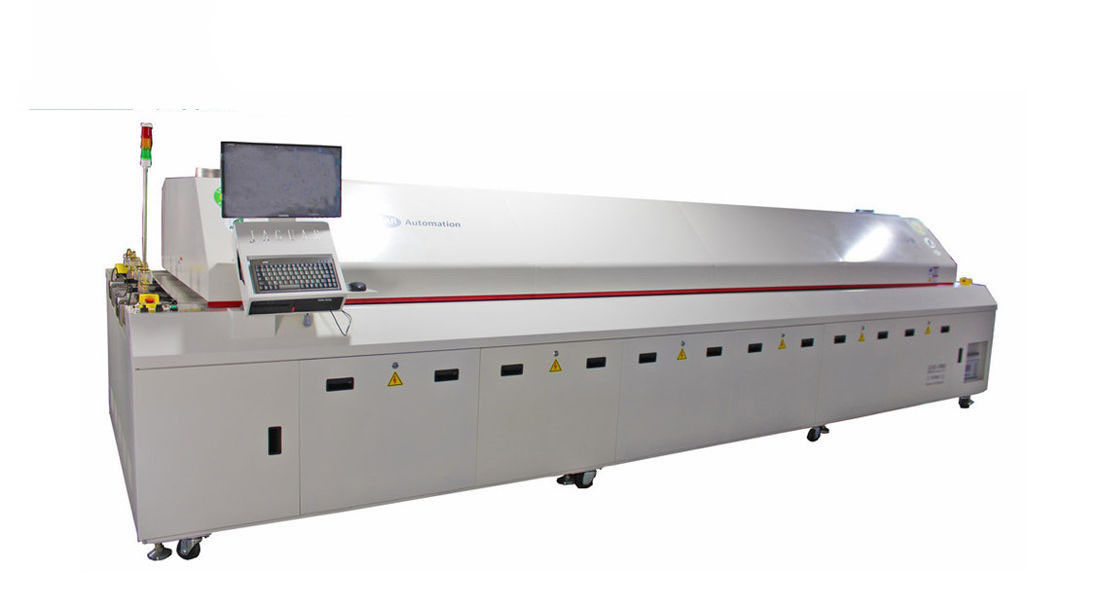

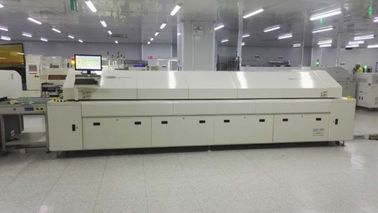

2800KG Lead Free 3 Cooling Zones Surface Mount Oven
We to achieve the industry's first single is compatible with two different specifictions PCB welding process while production with consumption of less than one PC of equipment to achieve production capacity of the two devices, to maximize efficiency, reduce power and nitrogen consumption, innovation and improvement cooling systems and optimized process control, to lower production costs and achieve a surface mount manufacturing process of the optimal process.
| Heating System | |
| Number of heating zones | Up 10 Bottom 10 |
| Heating passage | 3890MM |
| No. of Cooling Zone | Up 3 Bottom 3 |
| Cooling style | Force cooling air |
| Conveyor System | |
| Max. Width of PCB | 300mmx2(Single lane 50-500mm) |
| Mesh belt width | |
| Conveyor Direction | L→R(or R→L) |
| Process Height | 900±20mm |
| Conveyor type | Mesh Belt and Chain Conveyor |
| Conveyor speed | 0-1000mm/min |
| Fixed track | Front track fixed(option: rear track fixed) |
| Control System | |
| Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power consumption | |
| Startup power consumption | 42kw |
| Steady consumption | 10-14KW |
| Ramp Up time | About 35 mins |
| Temp. setpoint | Room temperature-300℃ |
| Temp. control method | PID close loop control + PC |
| Temp. control precision | ±1℃ |
| Temp. deviation on PCB | ±2℃ |
| Data storage |
Process Data and status storage (80 GB) |
| Nozzle plate | 8mm thick aluminum plate copper |
| Abnormal Alarm | Abnormal temp. (overtemp/low temp.) |
| Board dropped alarm | Tower light: Amber-warning, Green-normal, Red-abnormal |
| General | |
| Dimension(L*W*H) | 6200×1650×1550mm |
| Weight | 2800KG |
| Color | Computer grey |
Reliable Control system
※ Siemens PLC+Industrial PC with precise controlling unit and stabilized performance
※ PID close loop control + SSR driving to ensure the temp. control precision up to ±1°c and the temp. Deviation on PCB up to ±1.5°c
