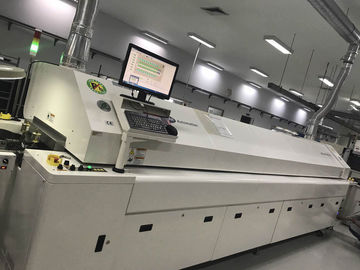

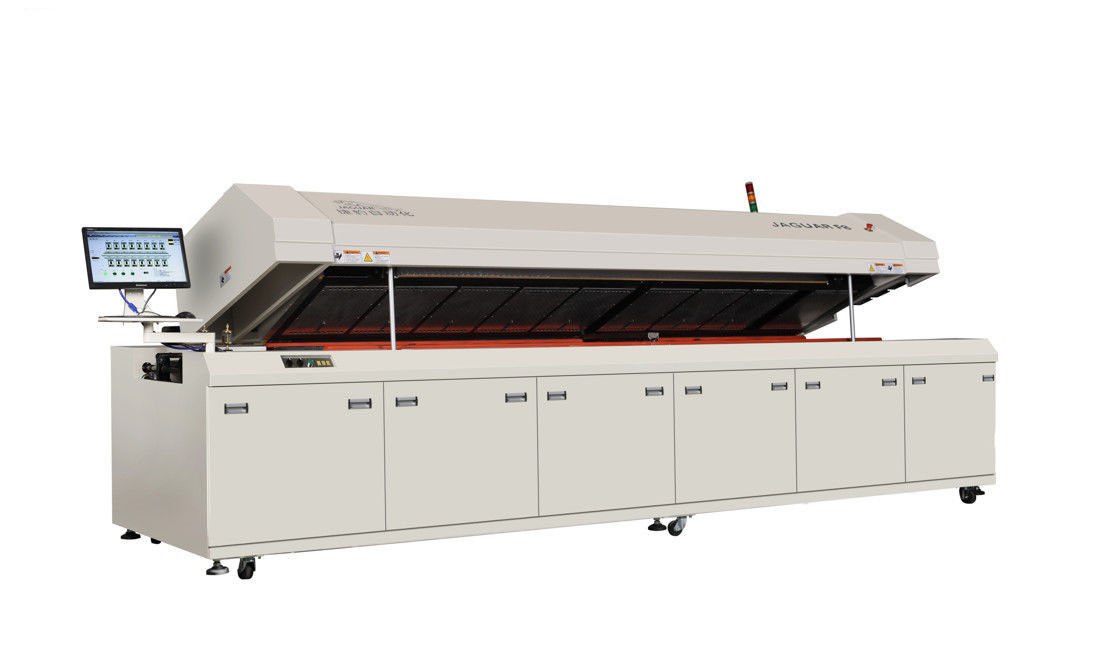

Lead Free IR Hot Air 10 Zones 450mm SMT Reflow Soldering Oven

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE , ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Standard Export Packing
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Conveyor:	Mesh Belt And Chain Conveyor	Mesh Width:	450mm
Max PCB Size:	400mm	Usage:	SMT ; LED ; SMD ; And Son On
Control:	PID + PC	Name:	Furnace ; Welding Machine ; Heating Machine
Application:	PCB Assembly	Heating Method:	Up Hot Air Bottom IR
Heating Zone:	10	Other:	Accept Customize
High Light:	450mm Surface Mount Oven , 400mm Reflow Soldering Oven , 450mm Reflow Soldering Oven

Lead Free IR Hot Air 10 Zones SMT Reflow Soldering Oven

Lead-free Hot Air Reflow Oven can meet high-end SMD soldering requirements, such as Consumer Electronics, Home Appliances, Instruments and Apparatus, LED high power lighting products and so on.

Heating System
Number of heating zones	Up 10 Bottom 10
Heating passage	3890MM
No. of Cooling Zone	Up 2 Bottom 2
Cooling style	Force cooling air
Conveyor System
Max. Width of PCB	400mm
Mesh belt width	450mm
Conveyor Direction	L→R(or R→L)
Process Height	880±20mm
Conveyor type	Mesh Belt and Chain Conveyor
Conveyor speed	0-1000mm/min
Fixed track	Front track fixed(option: rear track fixed)
Control System
Power supply	5 line 3 phase 380V 50/60Hz
Total power consumption
Startup power consumption	42kw
Steady consumption	8-12KW
Ramp Up time	About 25 mins
Temp. setpoint	Room temperature-300℃
Temp. control method	PID close loop control + PC
Temp. control precision	±1℃
Temp. deviation on PCB	±2℃
Data storage	Process Data and status storage (80 GB)
Nozzle plate	Aluminum Alloy Plate
Abnormal Alarm	Abnormal temp. (overtemp/low temp.)
Board dropped alarm	Tower light: Amber-warning, Green-normal, Red-abnormal
General
Dimension(LWH)	5800×1320×1490mm
Weight	2150KG
Color	Computer grey

Advantages

1. PC and PLC controller constitute a perfect and stable control system.

2. Powerful software features, PCB boar online temperature measurement and print and save the temp. curve at any time, easy to learn control software, can learn to operate within a few minutes.

3. Heating is a rolling start mode, providing the perfect solution for the customers with limited power.

4. Windows XP operating interface with powerful and simple operation.

5. The air flow model of imported reflow welding, and the hot air is uniformly sprayed on the surface of the plate through the static pressure effect, and the transverse temperature difference is less than +-2ºC
