| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Rated Power:: | 4.5kw | Soldering Max Area: | 960mm* 300MM |
|---|---|---|---|
| Delivery Options: | Net Transmission＋chain Transmission | Temperature Zones: | 5 |
| The Speed Of Conveyer Belt: | 0-1600mm/min | Temperature Control Mode: | PID Closed-loop Control |
| Overall Dimensions: | 1450×630×470mm | Heating Up Time: | Around 15mins |
| The Cooling Zone Quantity: | 1 | The Heating Zone Quantity: | Upper3/down2 |
| High Light: | 4.5kw SMT Reflow Oven,960mm SMT Reflow Oven,4.5kw Reflow Soldering Machine |
||
Automatic LED Infrared Heating SMT Reflow Oven
Technical parameters
|
The heating zone quantity |
upper3/down2 |
|
The length of the heating zone |
960mm |
|
The heating type |
intelligent level sirocco and rapid infrared heating |
|
The cooling zone quantity |
1 |
|
Maximum width of PCB board |
300MM |
|
The operation direction |
left?right |
|
Delivery options |
Net transmission+chain transmission |
|
The speed of conveyer belt |
0-1600mm/min |
|
The power supply |
Three phase 5 line 380V 50/60Hz |
|
Peak power |
4.5KW |
|
Heating up time |
Around 15mins |
|
Temperature control range |
Room temperature~300 |
|
Temperature control mode |
PID closed-loop control |
|
Temperature control accuracy |
±3 |
|
PCB temperature distribution deviation |
±2 |
|
Overall dimensions |
1450×630×470 |
Feature:
1. This machine uses infrared technology to strengthen the hot air heating system, equipped with special design wind wheel wind speed stability, temperature uniformity for the bulk of new LED light source, BGA components uninterrupted welding;
2. The machine is equipped with crawler, five-zone heating system, independent of each temperature zone using forced circulation, independent PID control, upper and lower independent heating, the temperature of the furnace chamber accurate, uniform, large heat capacity, fast heating from room temperature to operating temperature less than or equal 20 min;
3. smart curve heating, large capacity curve selection, with eight technology curve can meet the requirements of all types of welding processes;
4. programmable control technology, the preset memory function curve, according to your preset curve automate the entire welding process;
5. measured using a thermocouple temperature, and add a compensation circuit, the temperature measurement is more accurate, so that the curve is more perfect;
6. PID intelligent temperature control technology, allowing more accurate temperature control, no import high current solid state relay contact output can effectively avoid rapid warming or uninterrupted. warming caused by the chip or circuit board is damaged, the entire welding process more scientific and safety;
7. imported inverter motor drive system, PID closed loop speed control, with 1: 150 imported turbine reducer, smooth operation, adjustable speed range 0-1500mm / min;
8. Using independent wheel structure and the care level, special stainless steel mesh belt B word, durable wear-resistant smooth operation, precise speed of up to plus or minus 10mm / min;
9. separate cooling zones, to ensure that the low temperature of the PCB when the board of the required;
10. friendly man-machine interface, perfect LCD without a PC connected with the whole heating process at a glance;
11. fortitude appearance, compact size, from start to finish embodies technology-based. Mesa-type placement mode, so you have more space; the simple instructions, so you'll see.
Main components:
1 x Reflow Oven Machine
1 x Cable
1 x User Manual
Note:
1. The machine must be grounded.
2. The person in charge of the operation.
3. The drive chain 7 days plus a high temperature lubricant.
4. Do not place near flammable dangerous goods present reflow machine.
5. Do not reach into the normal working reflow machine.
6. Do not put foreign objects in the online transmission.
Routine maintenance:
1. Keep the cabinet clean.
2. Check the fan sleeve is loose.
3. Check the fan and electric motor.
4. Are there abnormal sound, check the fan drive is flexible.
5. Check out whether there are foreign objects blocking the vent.
6. Check the transmission belt is too loose.
7. Check whether there is abnormal sound electrical power box.
8. Check the transmission parts are loose and abnormal sound.
9. To check the machine before starting the operating voltage is within the safe range or is stable, in order to ensure safe operation of the components may be normal. Also check the power and check the various parameters are the same when the last shutdown. Do not allow the shutdown to stop the conveyor belt in the machine is still at a high temperature to avoid conveyor belt at high temperatures accelerate aging, it is best to let the machine temperature is lowered again to stop the conveyor belt.
10. Lubricate the drive wheel, with a high temperature lubricant smear every two months.
11. Operation of the machine the motor speed at a high temperature long term, be less than twice a week Add thereto WHEEL temperature oil to maintain its smooth functioning.
12. Clean the sticky and motor in a variety of residue on the blades, so as not to cause a short circuit aging or burn fan.
13. When the machine uses a three-phase five-wire system, the machine must be grounded.

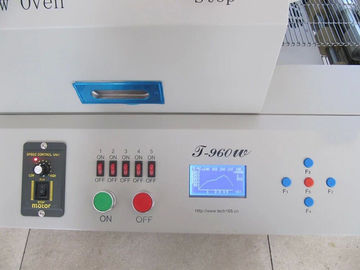

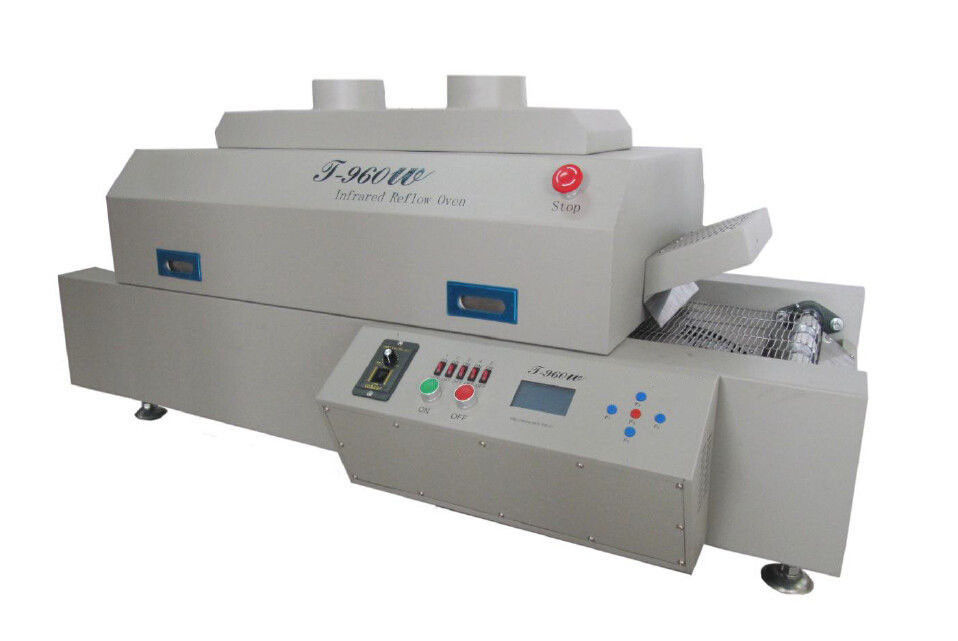

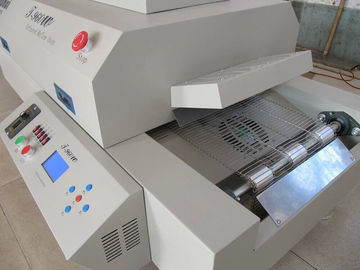

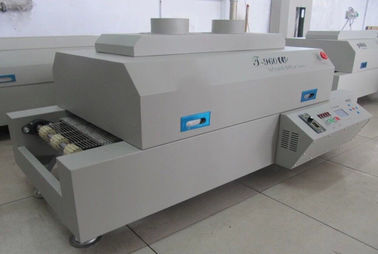

Pictures as follows:
