| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Dimension: | 3100*2400*1550 Mm | Total Weight: | 1800 Kg |
|---|---|---|---|
| PCB Thickness: | 0.5-5 Mm | Mounting Speed: | 60000 CPH |
| Input Device: | Keyboard, Mouse | System: | Windows 7 |
| Power: | 220AC 50HZ | Power Consumption: | 8 Kw |
| Conveyor Transmission: | Max Length:500mm | Components Space: | 0.2mm |
| High Light: | 3100*2400*1550mm SMD Mounting Machine,3100*2400*1550mm SMD Assembly Machine,60000CPH SMD Mounting Machine |
||

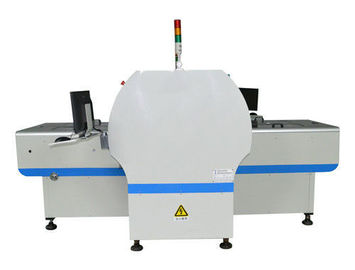

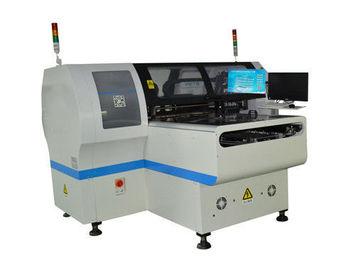

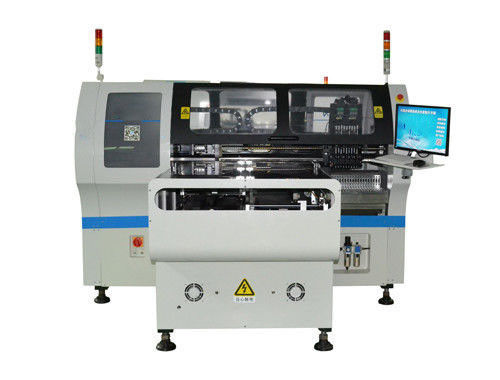

60000CPH 3100*2400*1550mm LED Bulb SMD Mounting Machine
Product Description
Our machine is a dual-system, dual-module multi-functional laminating machine, which can produce two different products at the same time. 16 suction nozzles of dual-module can be used to complete 60000 CPH efficiently.
Product features
Technical Parameter
| Dimension | Length | 3100MM |
| Width | 2400MM | |
| Height | 1550MM | |
| Total Weight | 1800kg | |
| PCB | PCB length width | Max:1200*350 mm Min:50*5 0mm |
| PCB thickness | 0.5~5mm | |
| PCB Clamping | Adjustable pressure pneumatic. | |
| O.S. | system | Windows7 |
| software | R&D independently | |
| Display | LED Monitor | |
| Input Device | Keyboard, Mouse | |
| Feeding system | No. of feeders | 2*17PCS |
| No. of nozzles | Dual module, totally 16 | |
| Feeder type | Electronic feeder | |
| Vision System | No. of Camera | 4 sets of imported camera |
| Vision for the flight identification + MARK correction | ||
| Mounting Precision | ±0.02mm chip | |
| Mounting Height | <15mm | |
| Mounting Speed | 60000CPH(optimum) | |
| Components | LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0603) | |
| Components Space | 0.2mm | |
| Power | 220AC 50HZ | |
| Power Consumption | 8 kw | |
| Operating Environment | 23℃±3 | |
| Conveyor Transmission | Max Length:500mm | |
| Transmission Speed | >500mm/sec | |
| Transmission Direction | Single(left→right or right→left) | |
| Transmission Mode | Online drive | |
| Air pressure | >5.0kg/cm2 | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 2 sets | Independent research and development by ETON | |
| X,Y Axies Driving | Servo motor |
Our Services
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
