| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New | After Warranty Service: | Video Technical Support |
|---|---|---|---|
| Local Service Location: | None | Showroom Location: | None |
| Warranty: | 1 YEAR | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine |
| Maximum Mounting Speed: | 11000Pcs/h | Number Of Feeders: | 64 |
| Number Of Placement/mounting Head: | 6 | Number Of Material Tray: | 6 |
| Average Power: | 500W | Location Precision: | 0.01mm |
| Buffering Range Of Vacuum Nozzle: | 4.5mm | Power Supply: | 220V 50Hz |
| Air Compression: | 0.5-0.6Mpa | ||
| High Light: | 500W SMD Assembly Machine,4.5mm SMD Assembly Machine,500W SMD Mounting Machine |
||

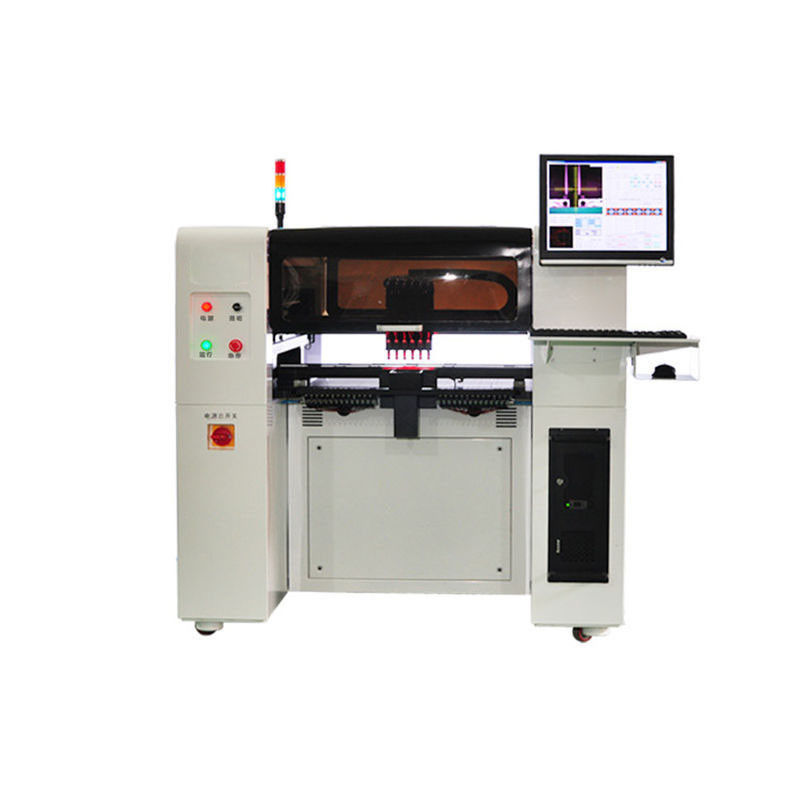

6 Heads 64 Feeders High Speed SMD Assembly Machine
Application
The SMD placement machine can carry out mount technique on square PCB board, round PCB board, aluminum substrate and strip lights. The finished products can be used in producing resistor-capacitor, glass cylinder package diode, triode, TQFP package, QFN package, QFP package, BGA package, lamp pole etc.
Technical parameters
| Maximum mounting speed: | 11000Pcs/h |
| Practical average mounting speed: | 8600Pcs/h |
| Number of feeders: | 64 |
| Number of placement/mounting head: | 6 |
| Number of material tray: | 6 |
| Average power: | 500W |
| Location precision: | 0.01mm |
| Buffering range of vacuum nozzle: | 4.5mm |
| Power supply: | 220V, 50Hz |
| Air compression: | 0.5-0.6Mpa |
| Weight: | 580KG |
| Dimension: | 1316*1360*1340mm |
| Maximum circuit board area: | 510×450mm |
| Maximum moving range of Z axis: | 20mm |
Configuration
Computer control system
The SMD placement machine is generally equipped with computer monitor and mouse. It supports XP and Windows 7. It enables visual programming and PCB file import because of the humanized operating system.
Automatic PCB loader
The SMD placement machine can directly put the printing finished PCB board onto the track to realize automatic board loading, aiming and placing and mounting. It supports multi-feeders: maximum 64 feeders. The size of standard IC tray, tube feeder, stick feeder can be adjustable.
Synchronous identification by six sets of cameras
The SMD placement machine is equipped with 8 cameras: one MARK, one high precision camera and 6 high-speed cameras. It can realize 6-head synchronous identification to ensure the speed and precision of mounting. The standard configuration is 16 JUKI high precision suction nozzles.

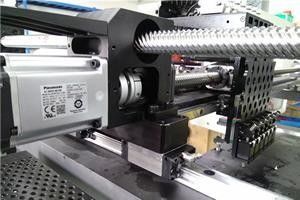

Servo system
The SMD placement machine is equipped with servo system imported from Panasonic, Japan with high precision and stability to ensure 24-hour stable mounting.
Chain
It adopts high pressure resistant and wear-proof drag chain which is the same type as the one of imported machines. The drag chain can bear thousands of times of proof pressure.
Track
It adopts high precision track from TBI Taiwan which has low noise and high precision to ensure the accuracy rate of BGA chips.
Conveyor
This SMD placement machine can be automatically connected to conveyor which can transport the PCB board to the SMD reflow soldering machine without manual assistant, thus saving labor cost.
Configuration parameters
Drive motor: servo motor from Panasonic, Japan
Identification mode: synchronous identification by six cameras
Vacuum source of suction nozzle: vacuum generator with vacuum breaking function
Belt feeder: 8mm, 12mm, 16mm, 24mm and FEEDER (STICK) which can carry out mounting of cylinder package chips
XYZ driver track: TBI high precision heavy load linear track
Motion drive system: Panasonic high speed DSP driver
Operating system: Windows: supporting windows XP, win7
Angle of components: any angle from 0-360°; synchronous rotation during motion
X/Y operational mode: linkage of curves running and acceleration and deceleration straight running
Positioning of fiducial MARK: the fiducial MARK can be set freely
Failure warning: alarming for shortage of material
Board loading mode: one stage automatic connection from left to right; automatic PCB transfer location; manual board loading
Visual display: 17-inch industrial control monitor; scale: 4:3; resolution: 1280x1024
Programming mode: point to point teaching programming, visual programming and coordinate importing of PCB file etc
Number of identification camera: one MARK, 6 high-speed cameras and one high precision camera.
Features
The SMT placement machine has the following features:
1. The biggest highlight of this machine is the professional 5 mega-pixel camera for chip mounting; it can realize effective mounting of chips of which the lead pitch is more than 0.3mm and the center distance is more than 0.5mm in an area of 40*40mm with a success rate of greater than 98%.
2. The SMT placement machine is equipped with additional 6 high-speed cameras which can realize 6-head synchronous identification. This can greatly improve mounting efficiency which is doubled on the original basis.
3. It also has the following two functions: fiducial marks auto-scanning and board auto-loading. These functions can further improve mounting precision during PCB board changing and simplify operation. It can also be connected with other equipment sets to form complete SMT production line.
4. This SMT placement machine can be automatically connected to conveyor which can transport the PCB board to the SMT reflow soldering machine without manual assistant, thus saving labor cost.
