| Condition: | New | After Warranty Service: | Video Technical Support, Online Support |
|---|---|---|---|
| Warranty: | 1 YEAR, 18 Months | Name: | Pcb Assembly Pick And Place Machine |
| Applicable Components: | 0402, 0603, 0805, 1206, Diode, Triode, BGA SOT, Etc | Mounting Speed: | 5000CPH |
| MAX PCB Area: | 480x300mm | Feeder Capacity: | 46 |
| Usage: | Circuit Board Assembly/LED Light Production | Feeder Type: | 8/12/16/24/32mm Feeders, Vibration Feeder, Tube Chip |
| Nozzle Quantity: | 4 | Shipping Term: | EXW/CIF |
| High Light: | 5000CPH SMD Pick And Place Machine,480x300mm SMD Mounting Machine,5000CPH SMD Mounting Machine |
||

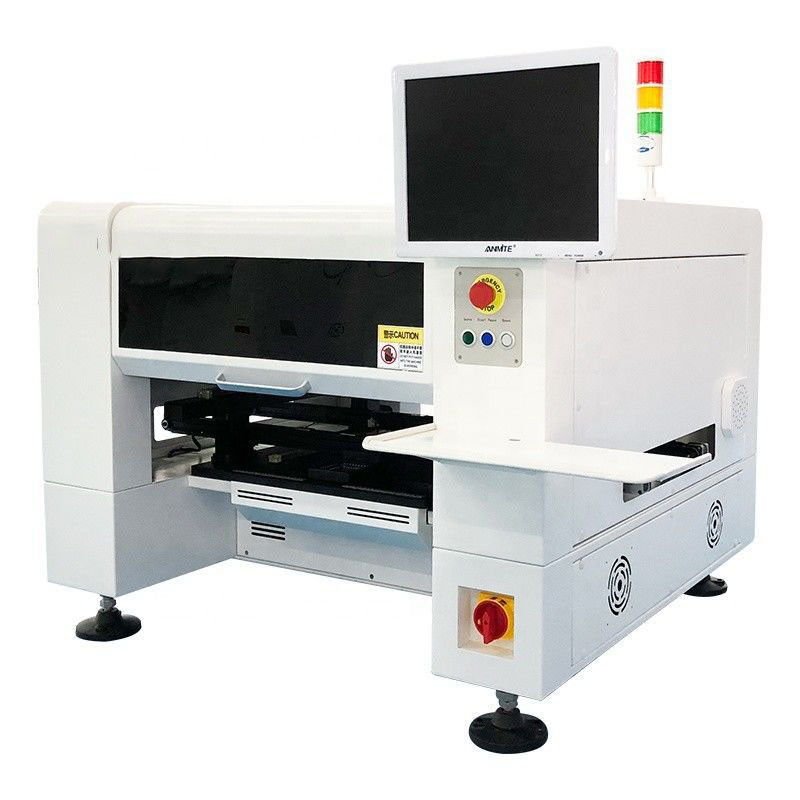

Fully Automation 5000CPH Desktop SMD Mounting Machine
1. High Precision: Equipped with 6pcs of cameras: 1pc of Mark recognition camera, 1pc of 500 million pixels high precision recognition camera, and 4pcs of synchronous high-speed recognition cameras, could effectively mount 0402-5050 components, LED beads, diodes, transistors, SOP, 40mm*40mm range pin pitch ≥0.3mm chip QFP, BGA etc.
2. Fast Speed: the max. mounting speed: 7000CPH, average mounting speed: 5000CPH.
3. Fully Automation: With rail guide, could be connected to other machines to achieve inline operation, thus greatly reduce labor costs, only need one person to complete the work.
4. Strong Stability: Panasonic Servo Motor and Drive, TBI high-precision grinding ball screw rod + heavy-duty linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.
|
Feeder No. |
46 |
Product Weight |
350KGS |
|
Mounting Heads |
4 (No need to change Nozzle) |
XYZ Drive Guide Rail |
TBI High-precision heavy-duty straight-line guide rail |
|
Average Power |
600W |
||
|
Positioning Accuracy |
0.01mm |
Motion Drive System |
Panasonic High speed DPS driver |
|
Nozzle Buffering Range |
5.0mm |
Operating System |
Support Windows XP, Win7 operating system |
|
Power Supply |
220V, 50Hz |
Component Angle |
0~360°, synchronized rotation in motion |
|
Compressed Air |
0.5-06Mpa |
X/Y Running Mode |
Intelligent curve acceleration and deceleration linear linkage |
|
Driving Motor |
Panasonic servo motor |
||
|
Mounting optimization |
Program automatically optimization, continue production after mounting completed, no need to wait for resetting |
Placement Mode |
Manual, semi-automatic, fully-automatic |
|
Convenient Button |
Offline, reset, automatic operation, clear alarm |
||
|
Nozzle Vacuum Source |
High-speed on-off vacuum generator with vacuum damage |
Alarm when open the cover |
Reducing speed or stop |
|
Max. PCB Area |
480x300mm |
Automated connection |
Can automatically connect signal equipment at both end |
|
XY Max. Movement Range |
556x680mm |
Rail Guide Adjusting Method |
Manual + Automatic |
|
Z Axis Max. Movement Range |
20mm |
Visual Display |
15" industrial control display ratio 4:3, resolution 1024x768 |
|
Belt Type Feeder |
8/12/16/24/32mm feeders, stick feeder |
Programming Mode |
Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
|
Max. Mounting Speed |
7000CPH |
||
|
Average Mounting Speed |
5000CPH (Visual) |
Recognition Camera No. |
1x Mark camera, 4x high-speed camera, 1x 500 million pixels high-precision camera |
|
Dimensions |
1180x1080x880mm |
||
|
Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc. |
|||
Applicable Mounting Range:
