| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Type: | Soldering Machine | Applicable Industries: | Manufacturing Plant |
|---|---|---|---|
| Rated Duty Cycle: | 90 | Rated Capacity: | 90 |
| Voltage: | 380V | Current: | 220V |
| Dimensions: | L3200*W1300*H1650MM | Warranty: | 1 YEAR |
| PCB Board Transport: | 750±50mm | PCB Board Transport Speed: | 0-2000mm/Min |
| Component Height Limit On PCB: | Max.80mm-120mm | Preheating Zone Length: | 1500mm |
| Number Of Preheating Zones: | 3 Segments | Heating Method: | Hot Air |
| Tin Furnace Power: | 7kw | Tin Furnace Tin Content: | 280KG |
| Starting Power: | Max. 7kw | Air Supply: | 0.3-0.6Mpa |
| Weight: | 700KG | ||
| High Light: | 380V SMT Soldering Machine,700KG SMT Soldering Machine,380V PCB Soldering Machine |
||

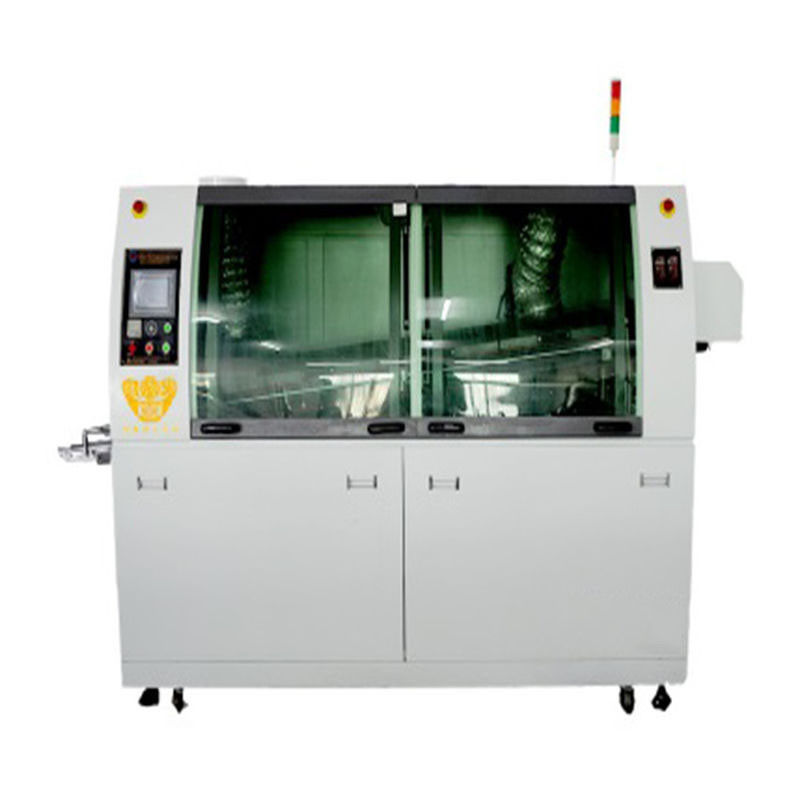

High Speed Hot Air SMT Soldering Machine For Dip Solder
|
Machine technical parameters |
||
|
PCB board adjustable width |
Max.50-300mm |
Max.50-350mm |
|
PCB board transport height |
750±50mm |
|
|
PCB board transport speed |
0-2000mm/Min |
|
|
PCB board transport angle (welding angle) |
Standard 5.5 degree fixed: adjustable +0.5 degrees or -0.5 degrees |
|
|
PCB board transportation direction |
L→R/R→L(option) |
|
|
Component height limit on PCB |
Max.80mm-120mm |
|
|
Preheating zone length |
1500mm |
|
|
Number of preheating zones |
3 segments |
|
|
heating method |
Hot air |
|
|
Number of cooling zones |
1pcs |
|
|
Tin furnace power |
7kw |
|
|
Tin furnace tin content |
280KG |
330KG |
|
Tin furnace temperature |
Room temperature~300℃ |
|
|
Temperature control method |
P.I.D+SSR |
|
|
Machine control mode |
Siemens PLC + Siemens temperature module control |
|
|
power supply |
3-phase 5-wire system 380V |
|
|
Starting power |
max. 7kw |
|
|
Air supply |
0.3-0.6Mpa |
|
|
Dimensions |
L3200×W1300×H1650MM |
|
|
Spray nozzle moving system |
Driven by stepper motor, the moving speed is average, stable and reliable |
|
|
Temperature control mode |
Siemens temperature acquisition module, PID temperature control is accurate and reliable, imported thermocouple detection system, with thermocouple abnormal alarm function. |
|
|
Adjustment mode |
Manual adjustment |
|
|
Manual adjustment |
Japan Matsushita frequency conversion stepless speed regulation 90W motor with overload limiter protection device |
|
Product Features:
1. Body linear design, using spray technology, beautiful and durable.
2. Three separate 1.5 m preheating section, all hot air preheating, with spotlights compensation device, the PCB to get a good welding results.
3. Patent-type titanium alloy die-cast claw chain, non-stick tin, never deformation, long life.
4. Throughout the observation window for easy operation and maintenance.
5. Tin stove down and out, with auto and manual adjustment. The use of back design to prevent misuse damage the machine.
6. Equipped with a cooling module, the temperature compensation module, suitable for lead-free solder and a variety of process requirements.
7. The latest invention of ultra-smooth, ultra filtered source generator, significantly weakened the flow of shock flow and turbulence within the tin production, tin wave stable, oxidation is greatly reduced, maintenance is simple.
8. Modular design with precision drive mechanism, drive accurate, long life, easy maintenance.
9. Rosin spray device can be pulled out, and removable, easy to clean and maintain.
10. Isolated spray device, flux fumes from the exhaust air duct dedicated.
11. Powerful library function parameters, various types of PCB process parameters can be invoked on demand operating.
12. A professional industrial computer control system to ensure reliability and stability.
13. The user can set the date, time and temperature parameters for Automatic Switcher.
14. Self-diagnosis system failure, malfunction automatically, troubleshooting queries at any time.
15. Heating temperature using PID closed-loop control, temperature control is stable and reliable.
16. Automatic tracking loop spray system, spray width and spray time to adjust, and spray as needed to extend the time set in advance and.
17. Over automatically from the wave plate, to minimize the amount of tin oxide.
18. Transport system with force limiters + limiting clutch double protection device.
19. Short circuit and overcurrent protection system.
20. Transportation system closed-loop control. Variable speed, precise control of PCB preheating and welding time.
