| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Type: | Soldering Machine | Condition: | New |
|---|---|---|---|
| Applicable Industries: | Solder | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | None | Showroom Location: | None |
| Rated Duty Cycle: | 98% | Rated Capacity: | 350 Liters |
| Voltage: | AC380V 50HZ | Current: | 63A |
| Dimensions: | 2600*1200*1700 | Usage: | Soldering Machine |
| Warranty: | 1 YEAR | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| Key Selling Points: | Easy To Operate | Weight (KG): | 280 KG |
| Name: | Wave Soldering | Transportation Speed: | 300-1200mm/min |
| PCB Max Width: | 50-250mm | Transport Height: | 750±20mm |
| Preheating Method: | Infrared/Hot Air | Wave Number: | Dual Waves |
| Total Power/Operating Power: | 15KW/3.5KW | Flux Storage Tank: | 6 Litres |
| Alcohol Capacity: | 4 Litres | Weight: | 800KG |
| Port: | Shenzhen | ||
| High Light: | 63A SMT Soldering Machine,2600*1200*1700mm Wave Solder Machine,2600*1200*1700mm SMT Soldering Machine |
||

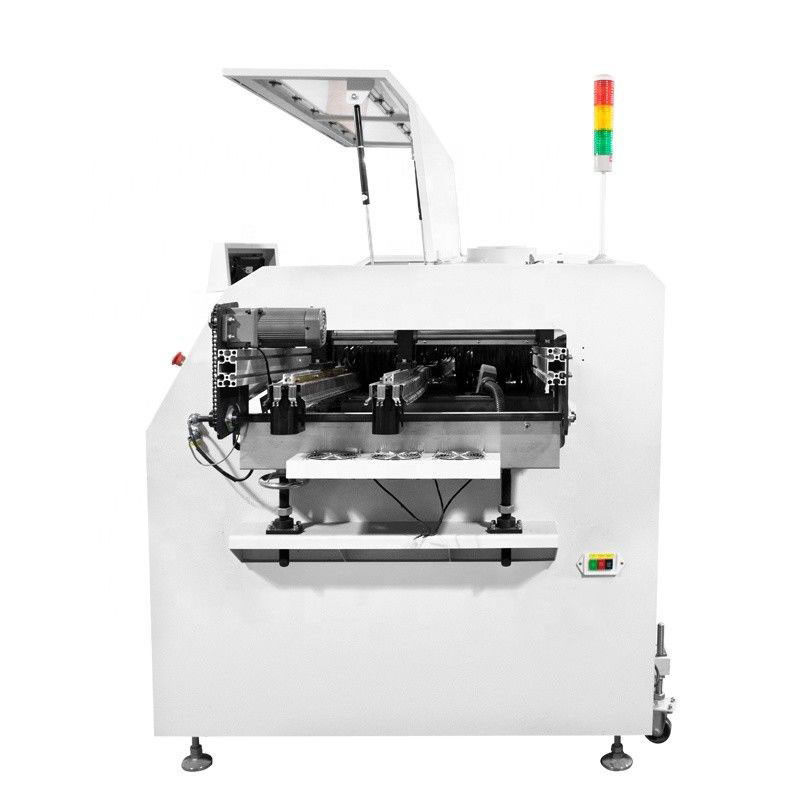

2600*1200*1700mm Dual Waves Preheating SMT Soldering Machine
1, Chinese and English man-machine interface, can be switched at any time
2, Full touch screen plus PLC control, all parameters are set, saved and recalled in the touch screen
3, With two temperature measurement , the temperature curve can be tested with the temperature measurement line.
4, Brand controlling system like Mitsubishi, Schneider Omron etc will warrant the stability of the machine
5, CE certificated
6, Entrance of machine, It can connect with inserting con veyor directly
7, Stainless steel long shaft pin chain conveyor, never abrasion
8, Stepper motor for sprayer driving, sider/rail for sprayer guiding Sprayer moving speed can be setin touch screen.
9, Moving speed will not be influent by air pressure.
10, Compare with air cylinder driving, it's moving quietly, stably, less maintenance, longer lifetime.
11, Any parts contact with solder they are made of Ti(not plated Tl, not cast iron pot) Just like solder pot impeller, wave tunnel, wave nozzle, bolts and nuts etc. So to grantee the lead free solder's pureness and kep the pot no eroded.
12, Cavesr apeathat at eftef mexdire
| Model | G-25K | G25T | G25C |
| Way To Control | Key +PLC | Touch Screen + Plc | Computer + Plc |
| Transport Motor | 1P AC220V 60W | ||
| Transportation Speed | 300-1200mm/min | ||
| PCB Max Width | 50-250mm | ||
| Transport Height | 750±20mm | ||
| Preheating Zone | Power: 6kw Length: 600mmThree-Stage Pid Control Temperature: (Room Temperature -250°) | ||
| Tin Furnace Heating | 15kw (Cast Iron Heating Plate) (Room Temperature -300°) | ||
| Preheating Method | Infrared/Hot Air | ||
| Tin Furnace Capacity | 280KG | ||
| Wave Number | Dual Waves | ||
| Wave Type | Turbulence first wave and Lambda 2nd wave | ||
| Wave Height | 0-12mm | ||
| Wave Motor | 3P AC220V 0.18KW*1PCS/2PCS | ||
| Claw Pump | 1P AC220V 6W | ||
| Cooling | Forced Centrifugal Blast Cooling | ||
| Pcb Transportation | L→ R(R→L) | ||
| Nozzle Moving Motor | Cylinder/Stepping Motor | ||
| Flux Storage Tank | 6 litres | ||
| Alcohol Capacity | 4 litres | ||
| Flux Pressure | 3-5Bar | ||
| Welding Angle | 4-6° | ||
| Power Supply | 3P AC380V 50HZ 63A | ||
| Total Power/Operating Power | 15KW/3.5KW | ||
| Machine Size | L2600*W1200*H1700mm | ||
| Weight | 800KG | ||
| Exhaust Air Volume Requirement |
15 cubic/min 2 (channel) | ||
