| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Type: | Soldering Machine | Condition: | New |
|---|---|---|---|
| Rated Duty Cycle: | Other | Rated Capacity: | Other |
| Voltage: | 380V | Current: | Other |
| Dimensions: | 3650*1200*1650mm | Weight: | 850KG, 1500KG |
| Usage: | DIP Wave Soldering | Product Name: | Mini Selective Wave Soldering Machine |
| Customize: | Yes | Solder Volume: | 350kg |
| Solder Temperature: | 350 Degree | Temperature Control: | PC+PID |
| PCB Conveyor Direction: | 760mm | PCB Width: | 350mm |
| Preheating Zone Number: | 3 Stages | Power Supply: | 380V |
| High Light: | 350kg Surface Mount Soldering Machine,20KW Surface Mount Soldering Machine,20KW PCB Soldering Machine |
||

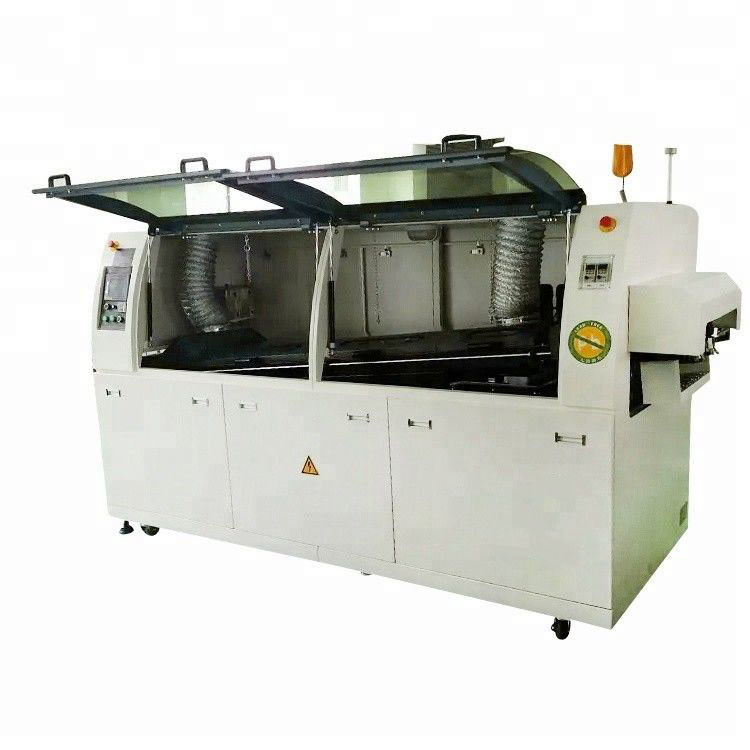

Mini Selective 20KW Wave Surface Mount Soldering Machine
Industrial PC control system dual wave soldering equipment, in addition to the usual machine-compatible automation performance, the more streamlined body design, simple and convenient computer window system, automated production and management of records to the next level.
Product parameters:
| PCB Working width | Max. 300mm |
| PCB conveyor direction | 760±10mm |
| PCB conveyor speed | 0-2.0m/min |
| Preheating zone length | 1500mm |
| Preheating zone number | 3 stages |
| Preheating temperature | 0~250℃ |
| Solder volume | 200-300KG Can be customized |
| Solder temperature | 0~350℃ |
| Temperature control type | PC+PID |
| Flux storage tank | Max5.2L |
| Power | AC380V |
| Power for heating up | 20KW |
| Power for operation | 7KW |
| Air supply | 4-7kg/cm2 12.5L/min |
| Weight | 850KG |
| Dimensions(L*W*H) | 3650*1200*1650mm |
Product main features:
1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
6. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.
7. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.
8. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.
9. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.
10. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.
11. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.
12. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle 12;
13. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor.
1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.
2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.
3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug
