| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
|---|---|---|---|
| Local Service Location: | None | Showroom Location: | Turkey, India, Russia, UAE |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 YEAR |
| Core Components: | PLC, Motor, Pump | Warranty: | 1 YEAR |
| Product Name: | Smt Assembly Machine | Customize: | Yes |
| Speed: | 20000-35000CPH | Resolution: | 0.05mm |
| Feeder: | 50pcs | Weight: | 1000KG |
| Power Supply: | 220V | Applicable Components: | 0603, 0805, 2020,3030,5050 |
| High Light: | 35000CPH LED Mounting Machine,35000CPH LED Pick And Place Machine,12 Nozzles LED Mounting Machine |
||

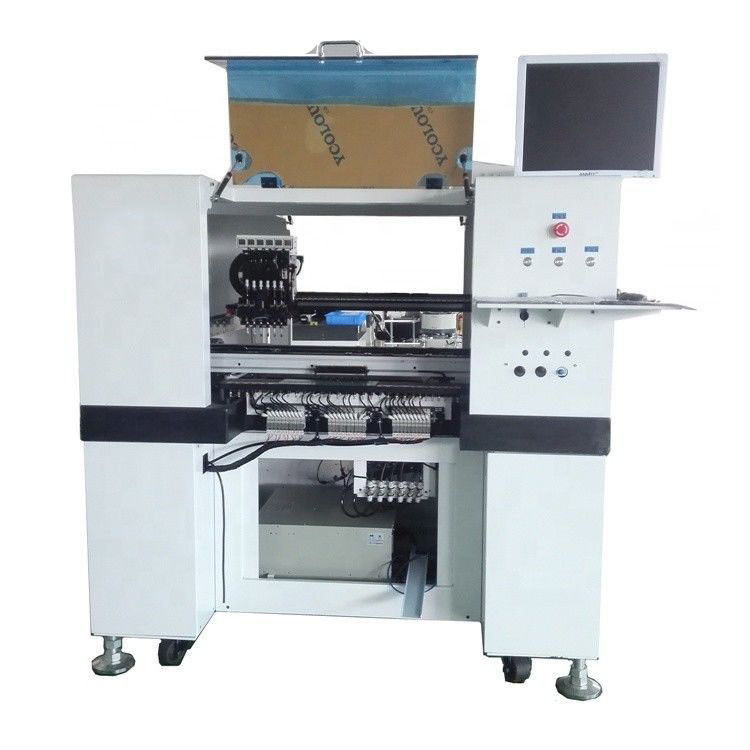

12 Nozzles High Precision Multifunction LED Mounting Machine
Product main feature0s:
1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
6. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.
7. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.
8. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.
9. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.
10. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.
11. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.
12. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle 12;
13. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor;
Technical parameters:
|
The biggest circuit board area |
500×400mm |
|
Maximum moving range |
X axis 500mm, Y axis 400mm |
|
Z axis Maximum moving range |
12mm |
|
Typical patch speed |
15000-20000cph |
|
Typical LED lens patch speed |
20000cph-35000cph |
|
The theory of maximum patch speed |
35000cph |
|
positionaI accuracy |
±0.05mm |
|
Location way |
Mark point camera + 6 sets sony Visual camera positioning + 1 industrial camera |
|
Components can be placed |
0603 above to 7272 resistors and capacitors, and all kinds of 0603 and 3528, 5050, 5630, 5730, meet placement of SOP, SOT chip, LED power driver, driver board, and compatible with all kinds of high-power chip SMD componets, LED lens placement |
|
Programm method |
Computer graphical programming + visual camera positioning |
|
Feeder applicable |
8mm, 12mm, 16mm and 24 belt type feeder, or vibration plate |
|
Number of feeder |
Standard placed 45pcs feeders of 8mm |
|
nozzles |
JUKI nozzle 504, 505 and 506 |
|
Product |
LED fluorescent tube, soft light belt, power drive, guardrail tube, module, display and other LED applications |
|
operating system |
WINDOWS XP, WIN 7 |
|
negative pressure |
An external air source 0.55MPA |
|
Power and rate |
220V, 50Hz, 1.2KW |
|
Weight |
1000Kg |
|
Dimension |
1300MM(L)*1300MM(W)*1450MM(H) |
