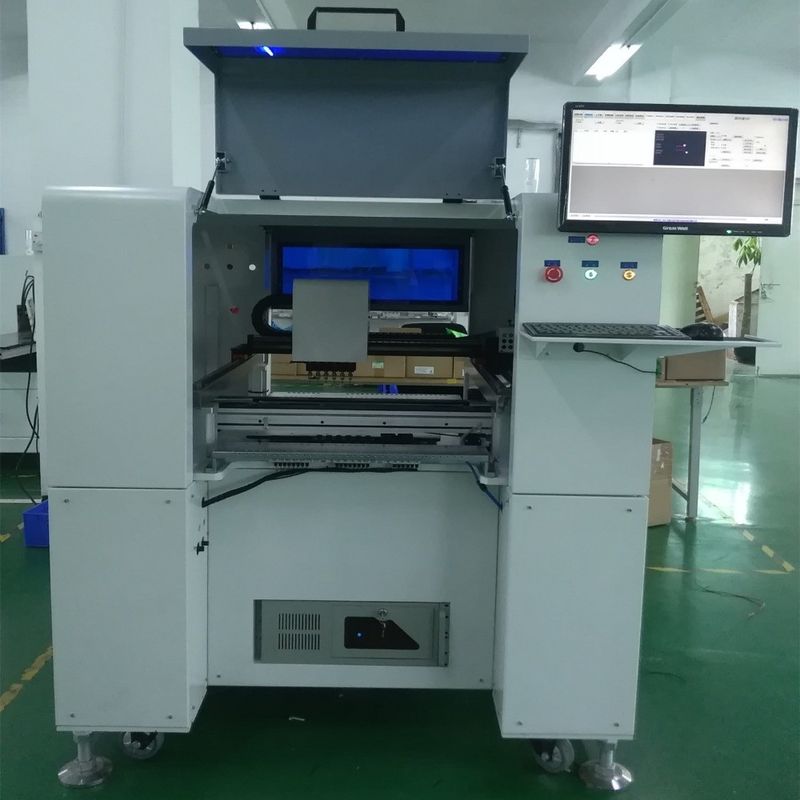

Fully Automatic 30000CPH 6 Heads LED Mounting Machine For IC Chip

Fully Automatic 6 Heads LED Mounting Machine For IC Chip


Product main features:
1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
6. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.
7. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.
8. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.
9. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.
10. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.
11. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.
12. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle 12;
13. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor;

Technical parameters:
