68 Feeders 150000CPH 1600KG LED SMT Machine For Soft Lamp

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE , ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Standard Export Packing
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Warranty:	1 YEAR, 1 Year	After-sales Service Provided:	Field Installation, Commissioning And Training
PCB Size:	250mm*any Length	Applicable Components:	Long Soft Strip Lamp
Weight:	1600KG	Power Supply:	220V 50Hz
Precision:	0.02mm	Name:	SMT Pick And Place Machine
Mounting Mode:	Group Taking And Group Taking	Feeder:	Electronic Feeder
Length:	2400mm
High Light:	1600KG LED SMT Machine , 1600KG LED Pick And Place Machine , 150000CPH LED SMT Machine

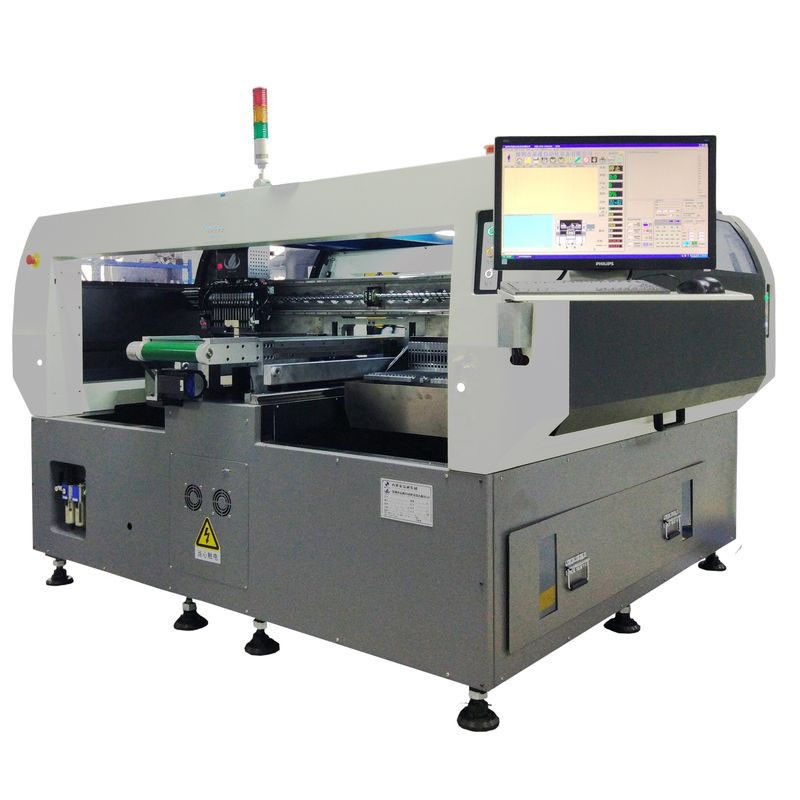

68 Feeders Roll To Roll LED SMT Machine For Soft Lamp

Product description

SMT pick and place machine is for 5 meters, 50 meters and any length of wire board, disposable mount. Apply to LED soft lamp manufacturer.
pick and place machine is for the two modules, dual-group interact to mount around, each module can be installed 17 nozzles, the minimum distance is 14mm between two adjacent nozzle. 14mm above can be freely adjusted, when the puzzle spacing of less than 14mm can be separated by one or more of the welding position adjustment nozzle spacing to interact mount. Achieving any length PCB uninterrupted pasted on. This mode is 5M,50M etc. And it’s identified the correct position by camera. So it’s high precision and good stability.

Specific technical parameter

LengthWidthHeight		2400mm2800mm 1800mm
Total Weight		1600kg
PCB Length Width		250mm*any length
Mounting Precision		±0.02mm chip
Mounting Speed	100000~150000CPH(optimum)
Components Speed	0.2mm
Power	220AC 50HZ
Power Consumption	7kw
No. of feeders	68PCS
Components	LED 3014/3020/3528/5050, resistors

68 Feeders 150000CPH 1600KG LED SMT Machine For Soft Lamp 0

FAQ

1) Do you have oversea after sale service?

We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.

2) How is the training?

After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.

3) It’s hard to use the machine?

No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.

4) Does your machines have quality certificates?

We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
