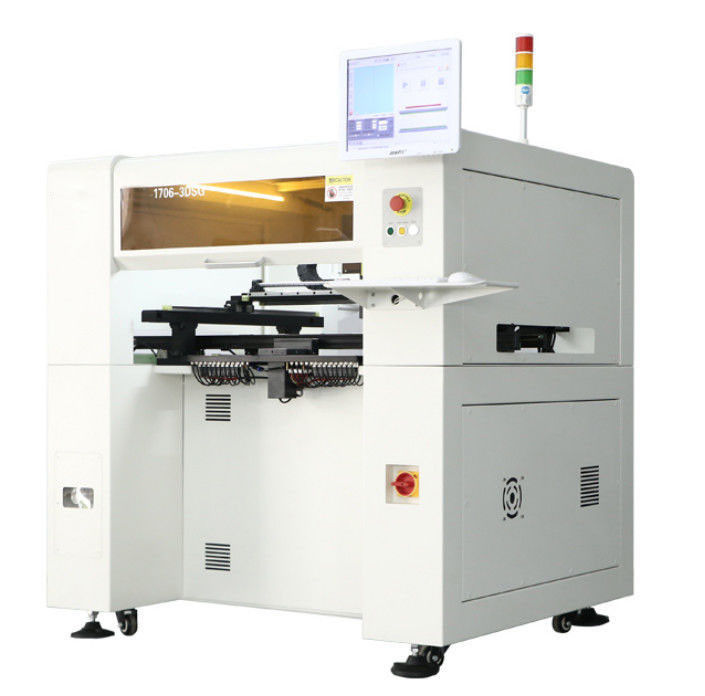

600W Electronic 13000CPH SMT Mounting Machine For LED Lamp Beads

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE , ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Standard Export Packing
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Condition:	New	Machinery Test Report:	Provided
Core Components:	Engine, Motor, Screw Rod	Warranty:	1 YEAR
Mounting Heads:	6	Feeder No:	60
Positioning Accuracy:	0.01mm	Nozzle Buffering Range:	5.0mm
Power Supply:	220V, 50Hz	Compressed Air:	0.5-06Mpa
Driving Motor:	Panasonic Servo Motor	XYZ Drive Guide Rail:	TBI High-precision Heavy-duty Straight-line Guide Rail
Operating System:	Support Windows XP, Win7 Operating System	Component Angle:	0~360°, Synchronized Rotation In Motion
High Light:	600W SMT Mounting Machine , 13000CPH surface mounting machine , 13000CPH smt mounter machine

High Speed Electronic SMT Mounting Machine For LED Lamp Beads

Product Advantages:

1. 8pcs of cameras: 1pc of Mark, 1pc of high precision, and 6pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.

2. XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.

3. Panasonic Servo Motor and Drive, TBI precise linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

4. Three-section transmitting boards-automatic connection from left to right (The first section is waiting for mounting, the second section is responsible for mounting (When the PCB board finishes mounting and transmits to the third section, the first section also receives the demand to prepare a new boards simultaneously.), the third section transmits the board from p&p machine to reflow oven. Effectively save time of transmitting boards and improve efficiency.

Product Specification:

Feeder No.	60	Product Weight	500KGS
Mounting Heads	6	XYZ Drive Guide Rail	TBI High-precision heavy-duty straight-line guide rail
Average Power	600W	XYZ Drive Guide Rail	TBI High-precision heavy-duty straight-line guide rail
Positioning Accuracy	0.01mm	Motion Drive System	Panasonic High speed DPS driver
Nozzle Buffering Range	5.0mm	Operating System	Support Windows XP, Win7 operating system
Power Supply	220V, 50Hz	Component Angle	0~360°, synchronized rotation in motion
Compressed Air	0.5-06Mpa	X/Y Running Mode	Imported TBI high-precision ball screw rod + imported TBI heavy-duty linear guide
Driving Motor	Panasonic servo motor	X/Y Running Mode
Recognition Method	Six heads recognize synchronously	Mark Point Positioning	Full automation
Nozzle Vacuum Source	High-speed on-off vacuum generator with vacuum damage	Intelligent Alarm	Automatic correction and supplement, alarm when materials shortage
Max. Circuit Board Area	650x370mm	Board Input Method	Three-section transmitting boards-automatic connection from left to right, automatic PCB transmission positioning
XY Max. Movement Range	700x619mm	Board Input Method
Z Axis Max. Movement Range	20mm	Visual Display	15" industrial control display ratio 4:3, resolution 1024X768
Belt Type Feeder	8/12/16/24mm feeders, stick feeder, tube chip	Programming Mode	Point-to-point programming, visual programming, PCB file coordinates inputting, etc.
Max. Mounting Speed	13000CPH	Programming Mode
Average Mounting Speed	10000CPH (Visual)	Recognition Camera No.	1 Mark recognition camera, 6 high speed recognition camera, 1 high-precision recognition camera
Dimensions	1335x1230x1420mm	Recognition Camera No.
Applicable Mounting Range: Suitable for 0201, 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc.
