| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New, 100% | After Warranty Service: | Online Support |
|---|---|---|---|
| Local Service Location: | Italy, Philippines, Brazil, Pakistan, India | Showroom Location: | Philippines, Brazil, Pakistan, India |
| Warranty: | 1 YEAR, 12 Months | After-sales Service Provided: | Online Support |
| Name: | Place Machine\LED Mounter\led Assembly Machine | Application: | Smd Pick Place |
| Applicable Components: | 0402 | Type: | SMT Machine Parts |
| Power Supply: | AC220V 50Hz / AC110V 60Hz | Function: | PCB Prototype Smt Production Line |
| Size: | 1316*1360*1340mm | ||
| High Light: | 1316*1360*1340mm smt chip mounter,6 head smt mounter machine,500W SMT Assembly Machine |
||

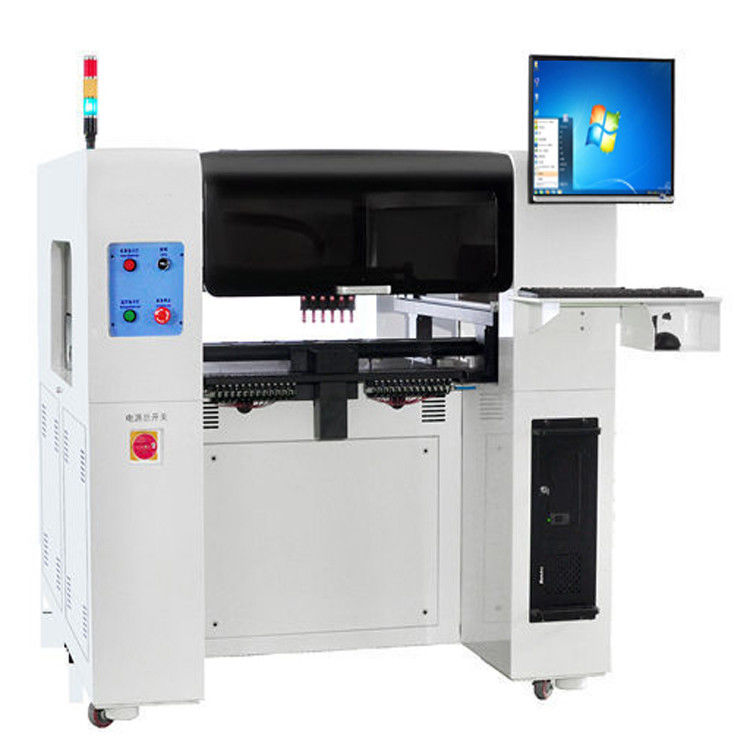

64 Feeders 6 Head Placement PCB SMD Assembly Machine
Application
The SMT placement machine can carry out mount technique on square PCB board, round PCB board, aluminum substrate and strip lights. The finished products can be used in producing resistor-capacitor, glass cylinder package diode, triode, TQFP package, QFN package, QFP package, BGA package, lamp pole etc.
Technical parameters
| Maximum mounting speed: | 11000Pcs/h |
| Practical average mounting speed: | 8600Pcs/h |
| Number of feeders: | 64 |
| Number of placement/mounting head: | 6 |
| Number of material tray: | 6 |
| Average power: | 500W |
| Location precision: | 0.01mm |
| Buffering range of vacuum nozzle: | 4.5mm |
| Power supply: | 220V, 50Hz |
| Air compression: | 0.5-0.6Mpa |
| Weight: | 580KG |
| Dimension: | 1316*1360*1340mm |
| Maximum circuit board area: | 510×450mm |
| Maximum moving range of Z axis: | 20mm |
