| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New | After Warranty Service: | Video Technical Support, Online Support |
|---|---|---|---|
| Local Service Location: | None | Feeders: | 60+60 |
| Video Outgoing-inspection: | Provided | Operation System: | Automatic |
| Warranty Of Core Components: | 1 YEAR | Marketing Type: | Ordinary Product |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Machine Weight: | 2150kg |
| Vision System: | HD Flying Camera | ||

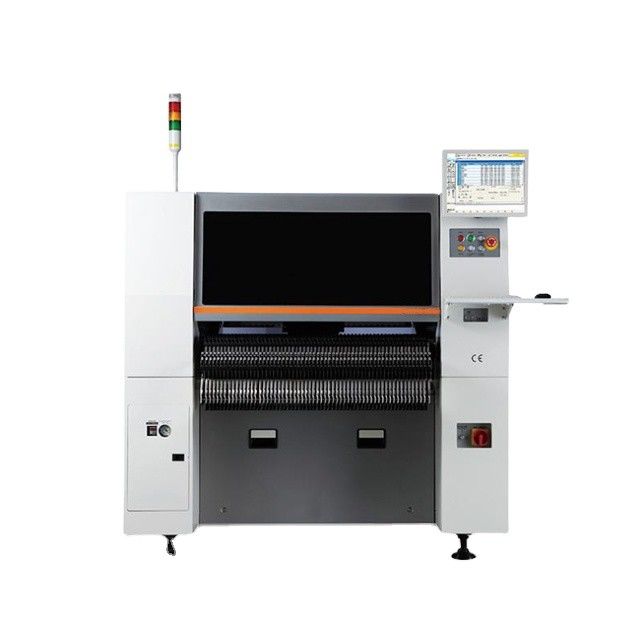

| High Light: | 78000CPH smt chip mounter,2150kg smt mounter machine,78000CPH SMT Mounting Machine |
||
|
Model
|
SM471
|
SM482
|
|
speed
|
78,000 CPH (best)
|
chip 1608 30,000 CPH (best)
|
|
component size
|
0402(01005 inch) ~ □16mm IC
|
0402(01005 inch) ~ □16mm IC
|
|
mounting accurancy
|
±25μm
|
±10μm
|
|
PCB size
|
MIN:50(L)x40(W)
MAX:460(L)x400(W) 510(L)x460(W)(option)
610(L)x510(W)(option) 740(L)x460(W)(option)
|
min:50(L)x40(W) max:460(L)x400(W) 510(L)x460(W)(option) 610(L)x510(W)(option) 740(L)x460(W)(option)
|
|
vision system
|
HD flying camera
|
Flying camera + fixed camera(Optional)
|
|
mounting head
|
10 spindles x 2 cantilevers
|
6 spindles x 1 cantilever
|
|
component thickness
|
01005--10mm
|
max 20mm
|
|
PCB thickness
|
0.38~4.2mm
|
0.38~4.2mm
|
|
feeders
|
60+60
|
60+60
|
|
voltage
|
AC 200/208/220/240/380/415V(50/60Hz,3Phase)
|
AC 200/208/220/240/380/415V(50/60Hz,3Phase)
|
|
power
|
Max 5.5KVA
|
Max 4.7KVA
|
|
air pressure
|
0.5~0.7MPa(5~7kgf/cm2) 160NL/min,50NL/min(Vacuum pump)
|
0.5~0.7MPa(5~7kgf/cm2) 160NL/min,50NL/min(Vacuum pump)
|
|
vision system
|
1,650mm(L) x 1,680mm(D) x 1,530mm(H)
|
1,650mm(L) x 1,680mm(D) x 1,530mm(H)
|
|
machine weight
|
2150kg
|
1655kg
|
|
work environment
|
5～30 degree
|
5～25 degree
|
|
work noise
|
35-65 decibel
|
35-65 decibel
|
|
correction model
|
Machine vision system, multi-point mark vision correction.
|
Machine vision system, multi-point mark vision correction.
|
|
driver system
|
AC servo, AC motor
|
AC servo, AC motor
|
|
data transmit
|
USB interface input (EXCEL document format),
|
USB interface input (EXCEL document format),
|
|
operation system
|
Chinese, English, Korean operation interface (WINDOWS system control platform)
|
Chinese, English, Korean operation interface (WINDOWS system control platform)
|
|
operation system
|
automatic
|
automatic
|
details
1. effectively guarantee the reliability and stability of the placement machine use for a long time.
2. The whole machine adopts precision guide rail, improve the SMT precision.
3. The whole machine adopts high-definition industrial camera, complete visual para pasted on high precision components.
4. Configuration, SMT machine vision system can automatically identify the MARK point, improve the efficiency and SMT placement machine production precision effectively.
5. Can be automatically visual programming is simple, convenient and even beginner is convenient and practical.
6. The machine configuration five suction nozzle. Can prompt by software manual to replace the suction nozzle.
7. Cost-effective automatic placement machine, the most suitable for small and medium scale production, scientific research and personal use.
