| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| SMT PNP Machine: | CHMT530P Auto Feeder + Vision System | Size Of PCB: | 350mm(L)×250mm(W) |
|---|---|---|---|
| Size Of Solder Printer: | 320*440mm (middle Size) | Reflow Oven: | BRT-420 |
| Soldering Area: | 960mm* 300mm | POWER: | 2500W |
| High Light: | 2500W SMT Line Machine,320*440mm SMT Production Line,2500W SMT Production Line |
||
Auto Feeder Pnp Machine / Screen Printer SMT Production Line
1. Solder printer:
| Technical Parameters | |
| Type: | Manual |
| G.W: | 13kg |
| Maximum print Area: | 320*440mm |
| Packing size: | L 71cm*W 52cm*H 14cm |

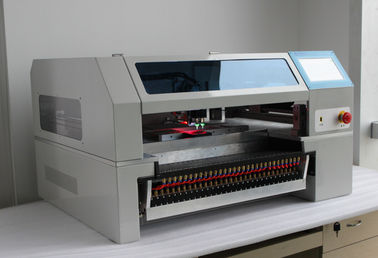

2. Pick and Place machine
|
Parameters |
|
|
XYZ Axis travel |
510mm(X)×450mm(Y)×15mm(Z) |
|
PCB max size |
350mm(L)×250mm(W) |
|
Support components |
0402-5050, SOP, QFN etc. |
|
Mounting speed |
|
|
Precision |
±0.025mm |
|
Placement head |
2pcs |
|
Feeding system |
|
|
Vision detection |
Double camera(up & down) |
|
Motor control |
|
|
Components leakage detection |
Vacuum and visual detection |
|
Main board |
High-reliability industry motherboard |
|
Touch Screen |
7 inches industry screen |
|
Operation system |
Embedded Linux system |
|
External air source |
0.5MPa |
|
Power supply |
AC220V 50Hz / AC110V 60Hz |
|
Demension |
890mm(L)×680mm(W)×490mm(H) |
|
Power |
250W |
|
Net weight |
90Kg |
3. Reflow Oven T960w:
|
Reflow Oven Soldering max area: 300*300CM Soldering way: Hot air + IR mix Rated power: 2500W Process Period: 5- 10 min Max temperature: 300 degree Temperature control accuracy ±1 degree (constant temperature) Welding type: Lead & Lead free Power Supply: AC110V-AC220V/50-60HZ |

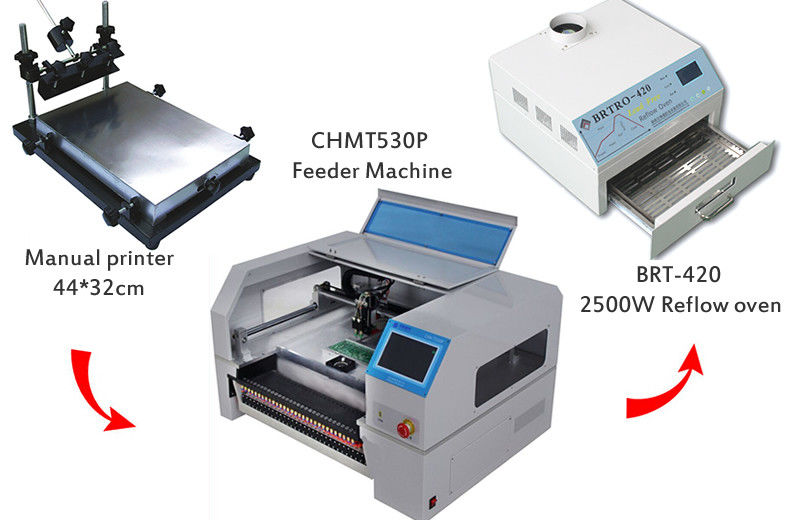

Small SMT production line:
Solder printer ------ Pick and Place machine ----- Reflow oven
