| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| 4432 Printer: | 44*32cm Table Size | CHMT36: | 2 Heads & 29 Feeders |
|---|---|---|---|
| PCB Size: | 10*10mm ~ 400*400mm | Reflow Oven: | T960 , 3500w |
| Nozzle Quantity: | 2 PCS | Speed: | 6000cph |
| High Light: | 6000cph SMT Production Line,6000cph SMT Assembly Line,44*32cm SMT Production Line |
||

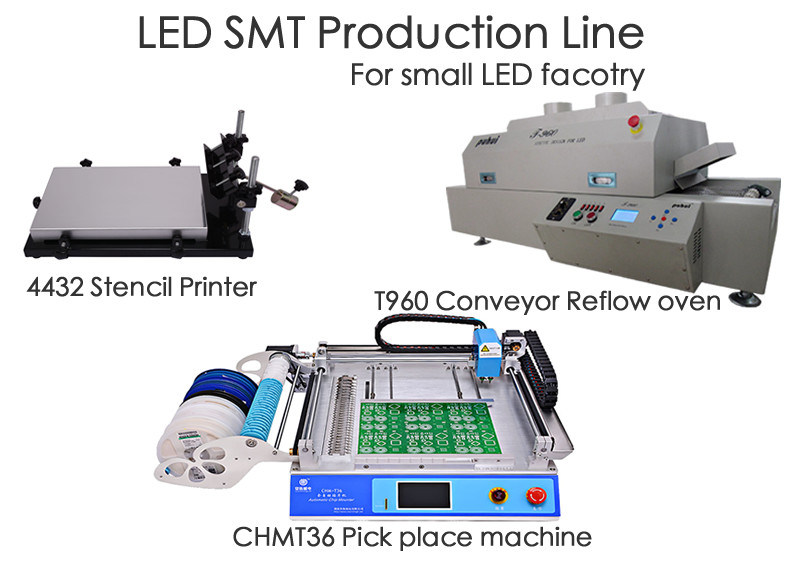

Chip Mounter / Stencil Printer / Reflow Oven LED SMT Production Line
1. CHMT36 Pick and place machine
| PCB area | 10mm*10mm - 380mm*415mm |
| X Y Axis travel | 420*460mm |
| Z Axis moving range | 15mm |
| Nozzle quantity | 2 PCS |
| Fedders | 37 Fedders (8MM=22 fedders, 12MM=4 fedders, 16MM=2 fedders, 24MM=1 fedder, prey IC tray = 8 fedders) |
| Speed | 6000cph ( highest 7200cph) |
| Precision | ±0.025mm |
| Size | 0402-5050, SOP,QFN ( width: 8MM, 12MM,16MM) |
| Dimension | L 960mm*W 705mm*H 335mm |
| vacuum air pump | -92KPA( in-built ) mute type pump, no need external air pump |
| Support work file | CSV file |
| voltage | 220V or (110V), 50/60Hz |
| Power | 200W |
| Net Weight | 65kg |
| volume | 0.41m³ |
2. T-960 Reflow Oven Technical Parameters
| Supply Voltage: | AC110V-AC380V/50~60HZ |
| Putout Power: | 4500W |
| Maximum Soldering Area: | 300×960 cm |
| Temperature Range: | 0-300 |
| Cycle Time: | 1~6 min |
| G.W: | 135kg |
| Packing size: | L 150cm*W 90cm*H 65cm |
3. Stencil Printer Technical Parameters
| Type: | Manual |
| G.W: | 13kg |
| Maximum print Area: | 320*440mm |
| Packing size: | L 71cm*W 52cm*H 14cm |
Applications industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.
Q1: What is the lead time of your products? (How long do you need to prepare my goods?)
A: 2-3 days for 1-3 unit machine. 5-15 days for mass production orders (based on different quantities).
Q2: How will you deliver my goods to me?
A: We usually ship by international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their goods rapidly. For bigger quantity, ship by air or by sea.
Q3: How long do I need to wait before my goods arrive?
A: 3-7 days for international express. 5-8 days for air transportation. 20-40 days for sea transportation.
Q4: What is your product quality?
A: Our raw materials are purchased from qualified suppliers, the best qaulity in China. And our engineers all have over 20 years expereinces in Machinery, ensure good quality and functions. Now CharmHigh's Quality and feedback is better than other brands in China.
