| HEAD: | 6 PCS | Name: | Led Chip Mounter |
|---|---|---|---|

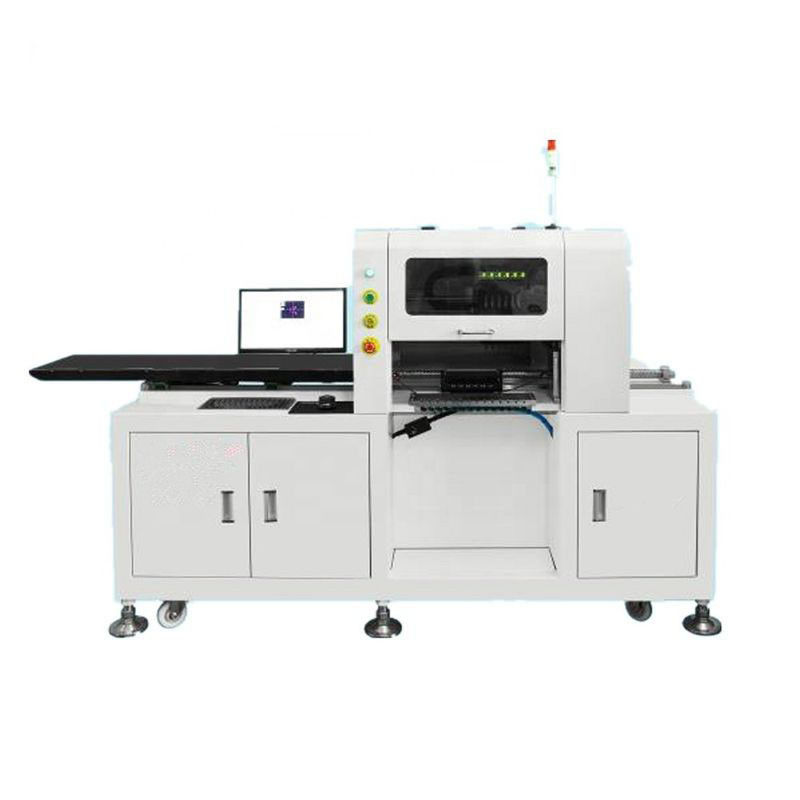

| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | Usage: | Pick And Place Components On Pcb |
| Shipping Term: | Sea | Warranty: | 1 Year |
| Applicable Components: | 0603-5730 | Packaging: | Wooden Box |
| Application: | Led Products | Payment: | T/T |
| High Light: | 1570KG SMT Pick And Place Machine,1570KG LED Pick And Place Machine,0.55MPA SMT Pick And Place Machine |
||
| Board size ATS20 (final placement) W-AT assembly: | L460 * W250 (Max) / L50 * W50 (Min) |
| Substrate thickness | 0.4-3.0 |
| Board transfer direction | right-left |
| Mounting accuracy | ± 0.1mm / CHIP ± 0.08 / QFP |
| Head | 6 |
| Placement speed | 0.2 seconds / CHIP 1.7 seconds / QFP |
| Types of originals: | 100 originals (MAX, 8MM band conversion) |
| Original pallets: | 80 types (used for TMAX, YTF) |
| Original supply form | 8-56mm wide, rod, bulk, tray |
| Mounting original | 0402-32mm original, long plug, CSP, BGA, QFP |
| Power Three-phase | AC220 / 208/230/240/380/400 / 416V ± 10%, 50 / 60HZ |
| Power Three-phase | 4KVA |
| Air pressure | above 0.55MPA, 350MIN |
| Dimension | L1650 * W1408 * H1850 |
| Weight | 1570KG |
Features:
1, the type of placement: to meet all the specifications 0603 to 7272 SMD LED components of the placement. And other flat-panel electronic components (such as resistors, capacitors, etc.) and high-power LEDs and lenses can be produced in addition to all flat LEDs.
2, positioning accuracy: the use of the most convenient positioning block, the substrate origin of the positioning of positioning, positioning accuracy (accuracy less than 0.05mm). The mounting angle range is 0-360 ° and the precision is 0.1 °. Each nozzle is an independent corner, plus six components to identify the camera, in addition to the traditional LED long lamp can be mounted, the bulb, downlight, spotlights, ceiling lamps, guardrail, LED drive power, copper Light string, etc. can be free to install.
3, high precision: X, Y, W axis are equipped with imported precision ball screw and guide rail, Z axis 6 group of imported motor drive, enhance the smooth movement of equipment coordination, reduce abnormal noise, greatly improve the patch accuracy and speed.
4, mounting board specifications: platform 1200X310mm (optional 1500X390mm), for the current market 99% of LED products;Can be affixed to a variety of shapes PCB board, without fixtures, can be posted 1.2-1.5 meters long PCB board.
5, the visual system: visual software online programming, in which the programming camera is a high-precision digital camera, no need to manually enter the component coordinates; and the use of visual camera automatically identify the positioning method to ensure the placement accuracy.
6, supporting software: simple and generous interface, functional and practical, visual software online programming, the software shows all the coordinates of the imposition, and the coordinates of which can be fine-tuned to achieve high-precision placement, no manual input component coordinates, fast and convenient , Simple and clear, combined with the actual needs of many LED manufacturers independent research and development design.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
