| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Warranty: | 1 YEAR | Item: | Pick And Place Machine |
|---|---|---|---|
| Application: | PCB Assembly | Number Of Heads: | 6 |
| Placement Rate: | 14000CPH | Tape Width: | 8mm,12mm,16mm,24mm |
| Smallest Component Size: | 0402 | Largest Component Size: | 40*40mm(Lead Pitch 0.4mm) |
| Resolution X/Y Axis: | +-0.01mm | Max Tape Feeder Capacity: | 64 |
| High Light: | 14000CPH SMT Pick And Place Machine,40*40mm SMT Pick And Place Machine,14000CPH Surface Mount Pick And Place Machine |
||

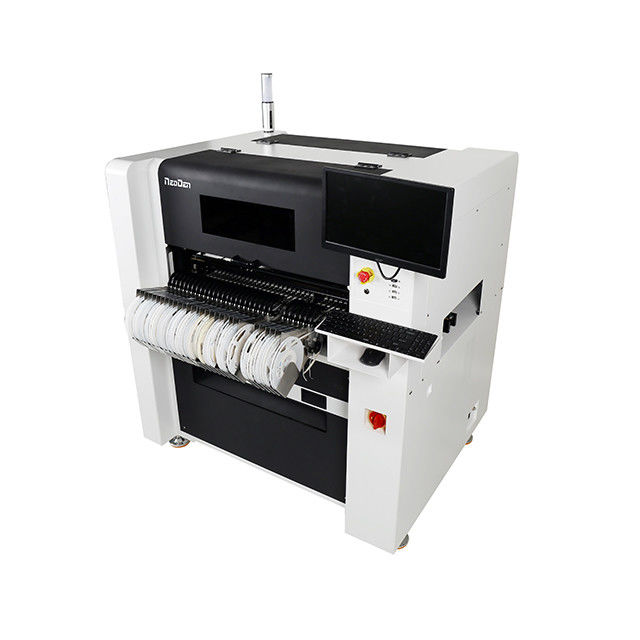

SMT Pick And Place Machine has six simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expandability and compatibility. Using new, highly efficient linear servomotors, lightening and stiffening the head unit, and reviewing the placement speed of 14,000 CPH.
Features
1. Integrated flying vision system
2. Panasonic Servo driven, position feedback from 2 micron linear scales coupled with a precision placement head
3. 6 Simultaneous pick-up head
4. Placement rates up to 14,000 cph
5. The GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
6. Accurately place, manager, and track components with Smart Feeders
7. Up to 64 (all in 8mm)tape feeders
8. Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others
9. Support cut tape, loose, tube, or tray feeders
|
Number of Heads
|
6
|
|
Alignment
|
Digital Flying Vision
|
|
Drive Motor
|
Panasonic Servo Motor A6
|
|
Max Placement Rate
|
14000CPH
|
|
Max Tape Feeder Capacity
|
64
|
|
Other feeder
|
Vibration Feeder,Tray Feeder
|
|
Placement Area
|
630*300(1200 optional)
|
|
Resolution X/Y Axis
|
±0.01mm
|
|
Air Source
|
0.6MPa
|
|
Component Range
|
Smallest Size:0402
Largest Size:40*40mm(Lead Pitch 0.4mm)
Max Height:10mm
|
