Name: 19300CPH LED Mounting Machine
Brand: OEM

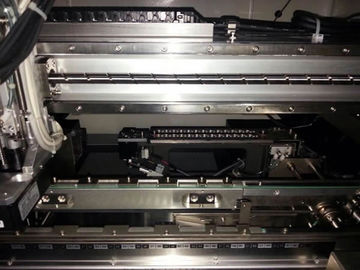

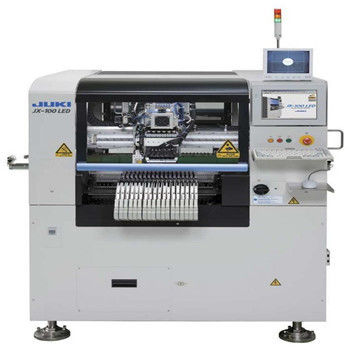

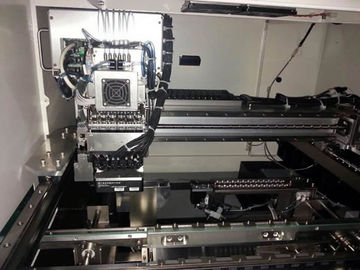

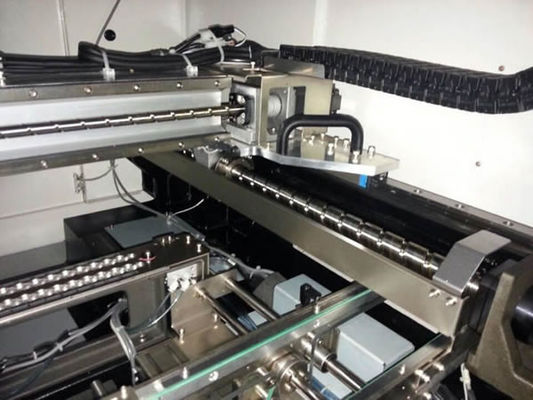

19300CPH LED Mounting Machine

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE , ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Standard Export Packing
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Condition:	New	After Warranty Service:	No Service
Core Components:	PLC	Warranty:	One Year
After-sales Service Provided:	Video Technical Support	Applicable Components:	0201 (metric 0603) Chip ~ 33.5mm
Placement Accuracy:	± 0.05mm	Dimensions:	1390 * 1270 * 1440mm
Substrate Size:	Min. 50 * 50 ~ Max. 800 * 360mm	Component Mounting Speed:	0.187 Sec / Chip (19,300 CPH)(Best Condition)
Rated Power:	1.5KVA	Weight:	Approx 1000kg
Type:	Automatic	Function:	PCB Prototype Smt Production Line
High Light:	19300CPH LED Mounting Machine , 19300CPH LED Pick And Place Machine , 1.5KVA LED Mounting Machine

SMD LED Mounting Machine

Product Description

1. Using two substrate feed mode, the maximum can be applied 800mm * 360mm large-size substrate placement operations, Which can be achieved at a lower cost in the high-speed growth ,laptop LCD display backlight and lighting, and so on Industry LED chip placement processing.
2. The highest level of productivity placement speed 0.187 seconds / chip ,19300CPH(Best condition).
3.Although the volume is small and light, but can achieve higher productivity.
4. Suitable for mounting from 0603 chip to ~ 33.5 components, only one machine can identify and mount a variety of components.
5. Not only can identify the square, PLCC type, the top of the light-emitting LED, but also applied to our company to develop a new identification system to identify the side LED, in order to achieve any type of LED placement operations.
6. The operation interface adopts the complete graphic solution which is not restricted by language type, while the touch screen operation is easy to novice operation; In addition, But also according to the operator's line of sight up and down angle adjustment.

Applicable components	0201 (metric 0603) chip ~ 33.5mm
placement accuracy	± 0.05mm
Dimensions	1390 * 1270 * 1440mm
Substrate size	Min. 50 * 50 ~ Max. 800 * 360mm
Component Mounting Speed	0.187 sec / Chip (19,300 CPH)(Best Condition)
Rated power	1.5KVA
Weight	Approx 1000kg
Type	Automatic
Core Components	PLC

FAQ

1. This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video showing you how to use machine.

E-mail /or online service contact are available if you still have questions

2. If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

We shall pay the postage If the part is less than 0.5KG

3. MOQ ?

1 set machine, mixed order is also welcomed.

4. How can I buy this machine from you? ( Very easy and flexible! )

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
