Name: 9500CPH SMT Mounting Machine
Brand: OEM

9500CPH SMT Mounting Machine

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE , ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Standard Export Packing
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Local Service Location:	None	Showroom Location:	None
After-sales Service Provided:	Video Technical Support, Free Spare Parts, Online Support	Max Applicable PCB:	350*435mm
Placement Head Quantity:	4	Max Mounting Capability:	9500CPH Without Vision / 7000CPH With Vision
Applicable Components:	0402,0603,0805,SOP8,SOP16......QFN	Components Supply:	Tape Reel Tray, Bulk Package(IC)tubes
Motor Control Scheme:	Stepping Motor, Close-loop Control System	Feeders:	38 (YMAHA Feeder Is Available)
Tape Width:	8mm,12mm,16mm,24mm	Warranty:	1 Year
High Light:	9500CPH SMT Mounting Machine , 7000CPH SMT Mounting Machine , 9500CPH smt mounter machine

High Speed SMT Mounting Machine

Parameters

Applicable PCB	2040mm-350435mm
XY-axis Moving Range	375*715mm
Z-axis Moving Range	16mm
Placement Head Quantity	4
Mounting Capability	9500pcs/h without vision
	7000pcs/h with vision
Mounting Accuracy	0.025mm
Applicable Components	0402-5050,SOP8.LQFP100 etc.
Components Supply	Tape reel, Bulk , IC tubes
Motor Control Scheme	Closed-loop stepping servo system
Tape Width	8mm, 12mm, 16mm, 24mm
Feeder	38 (YAMAHA Feeder is available)
Machine Dimension	L852W962H1230
Visual Camera	6 CCD camera
Down-looking Camera	Automatic identify the mark point
Up-looking Camera	Automatic adjust the offset
Vacuum Pump	External air pump
Power Supply	AC220V/AC110V
Net Weight	215kg
Packing Size	1.35CBM

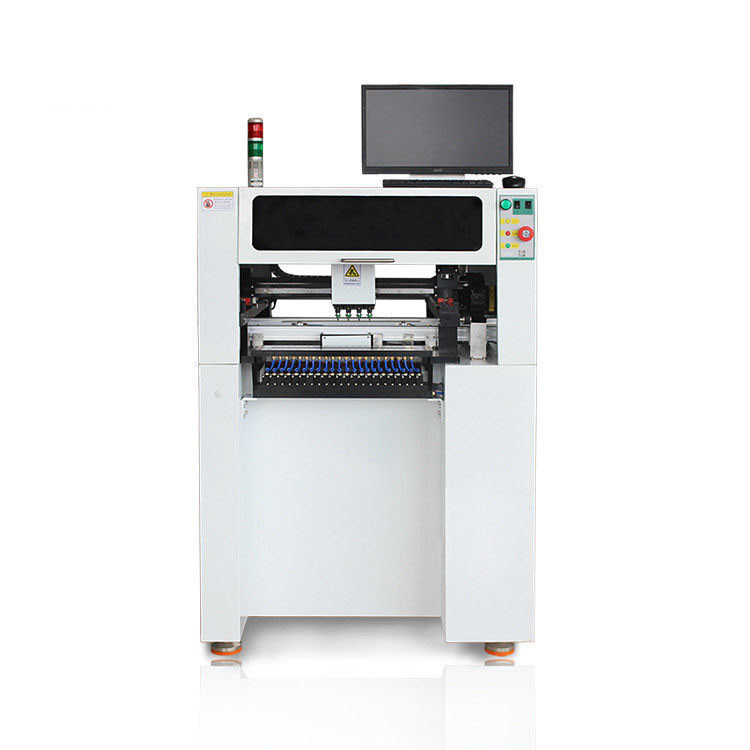

Product Description

SMT pick and place machine is newly developed vertical machine. X-axis, Y-axis and Z-axis use high precision straight slide. They make the positioning more accurate. Multi-V ision System: one down-looking camera. Up vision system includes four small cameras and one big camera. It can save time that four nozzles will be examined over four cameras at the same time. So the mount speed of machine is faster than before. The machine has added new research and development automatic transmission system. The maximum mounting length is 600mm. It can satisfy more people's requirement.

Feature

HIGH SPEED SYNC CAMERAS
Simultancous correction when 4 placement heads picking up different components. Ensure accuracy while increasing work efficiency. Automatic detection when material is missing and automatic supplementary material.

HIGH DEFINITION CAMERA
Added a 500 million pixels high precision camera. Mounting chip

FOUR NOZZLES THROUGH VISION SIMULTANEOUS
Self-developed operating software. Four nozzles through the vision at the same time can save more time. placement more accurate

It can save time that four nozzles will be examined over four cameras at the same time.

Multi-vision makes placement faster.

Add a HD camera, improve IC placement accuracy.

Automatic Transfer

The QM41 has added new research and development automatic transmission system.

The maximum mounting length is 600mm.

It can satisfy more people's requirement.
