| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Stencil Printer: | 300*400mm (3040) | Pnp Machine: | CHMT36VA (29 Feeder 2 Heads + Double Vision Camera) |
|---|---|---|---|
| Reflow Oven: | T962A 300*320mm Soldering Size 1500W | Usage: | Small Batch Production |
| Printer Way: | Manual | Placement Heads: | 2pcs |
| Stencil Printer Dimension: | 540*370*350 Mm | Stencil Printer Weight: | NW.21Kg GW.22Kg |
| High Light: | 300*400mm SMT Line Machine,300*400mm SMT Manufacturing Line,1500W SMT Manufacturing Line |
||

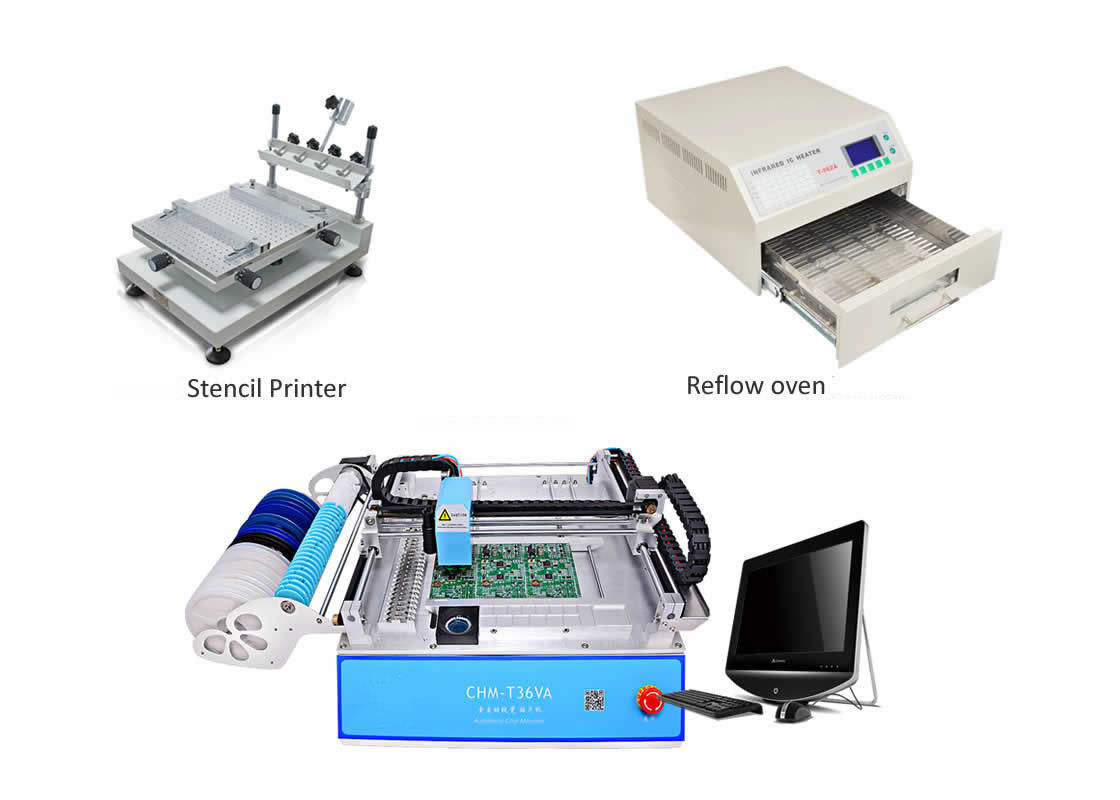

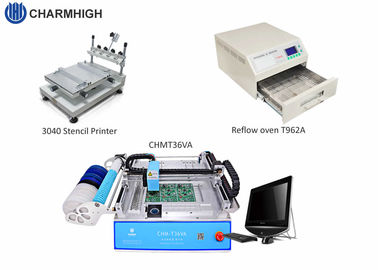

Small SMT Manufacturing Line
1. High precision stencil printer:
| Work table size | 300*400mm |
| Print size | 250*400mm |
| Max net frame size | 370*470mm |
| Printer way | manual |
| Thickness of the substrates | 0-80mm |
| The workbench adjust volume | 10mm, Horizontal Angle adjustment |
| Printing platform height | 220mm |
| repeated accuracy | ±0.01mm |
| locate mode | Benchmark or hole shape |
| Dimension | 540*370*350 mm |
| Packing size | 660*500*280mm |
| Weight | NW.21Kg GW.22Kg |
2. pick and place machine (work with external PC)
| PCB area | 10mm*10mm - 355mm*355mm |
| X Y axis Travel | 420*460mm |
| Z axis moving range | 15mm |
| Placement heads | 2pcs |
| Feeders |
8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs, Front IC tray=14pcs, user-defined IC tray |
| Vision system | Dual cameras(up & down cameras) |
| Drive | Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection | Yes, prevent nozzles breaking |
| Pull pin self-return | Yes, prevent pull pin breaking |
| Leakage of material detection method | Vacuum detection, vision detection |
| Mounting speed | 4000cph (vision off); 2800cph (vision on) |
| Mounting precision | ±0.025mm |
| Components | 0402-5050,SOP,QFN,(tape width: 8MM,12MM,16MM,24MM) |
| Machine dimension | L 960mm * W 705mm * H 335mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | Yes (software compatible with windows7) |
| Voltage | 220V (110V),50Hz 60Hz |
| Net weight | 65kg |
| Compatible software | Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS..etc |
3. Reflow oven parameter (new updated with fan):
Soldering Max Area: 20 X 20 cm
Rated Power: 1500W
Supply: AC110V~ AC220V /50~60HZ
Pictures as follows:

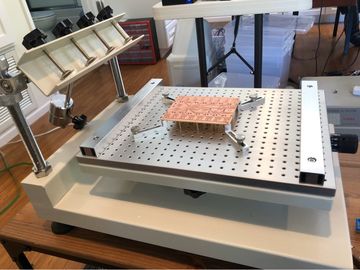

1. Stencil printer (high precision)

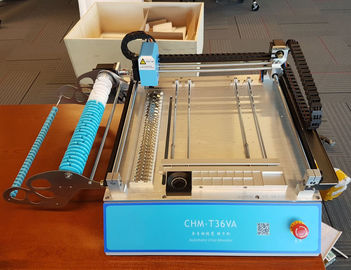

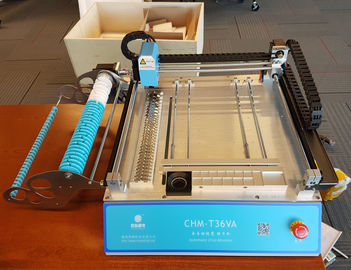

2. Pick and place machine with Vision System (need external PC)
Competitive Advantage:
1. Convenient software, Embedded Linux System of the machine, very stable industry main board, independent operation, no need external computer, operation more easy and convenient.
2. Top and bottom two cameras CCD system correct the position of each components very accurate, especially for IC (max 22*22mm).
3. Machine support all different kinds of components, from 0402, 0603- QFN, as well as cut tape, tube IC, or bulk IC. Machine can place multi kinds of PCB.
4. It has flexible PCB clamping fixture, and it has custom IC tray, front bulk IC feeder, very convenient.
5. The vision also can second correction machine origin point, make sure origin point correct.
6. 2 heads/ 4 heads with high precise Juki Nozzles with magnet, no need to disassemble with wrench, nozzles can rotate angle -180 degree~ +180 degree. Placing height is adjustable. 4 serials machine max components height is 5mm and 5 serails machine max height is 10mm.
7. 4 serails machine's pull pin automatically return to avoid nozzles broken, pull pin not be stuck. 5 serial's machine using Yamaha pneumatic feeder auto feeding, more faster speed.
8. Z axis detection, placement head can auto detect the height and angle, auto back to origin to prevent any broke.
9. Closed-loop control, X,Y Axis with encoder, motor never lose steps.
10. PCB calibrate by two vision cameras (machine will auto find 2 points), amend the offset of PCB. Only calirbate 2 points, rest components will auto correction, calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.
11. Comes with vacuum detection, if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
12. Comes with vision detection, camera will auto correct component angle and place onto PCB board in right place. If heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop.
13. If lack material it will automatic detection, then alarm; after supply material, then continue working, no need to re-start.
14. Support any number of PCB batch.
15. If no PCB file, or don’t use software load out work file, you can create a new file to program.
16. Comes with convert tool (PC version), edit work file in computer and load work file into machine by USB port, quick and convenient.
17. Support single step.

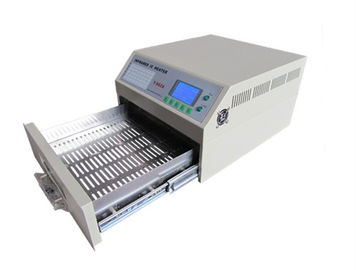

3. Reflow oven (NEW TYPE WITH FAN)
