| Type: | Reflow Solder | Usage: | PCB Soldering |
|---|---|---|---|
| Voltage: | AC380V 50-60Hz | Weight: | 1600KG |
| Dimensions: | 4400*900*1450mm | Rated Duty Cycle: | 90% |
| Rated Capacity: | 7KW | Current: | 20-50A |
| Heating Method: | Hot Air | PCB Width: | Max 400mm |
| Temperature Range: | Room Temperature ~ 300 | Application: | SMT LED Packaging PCB Welding |
| Heating Zones: | Up 8 Down 8 Zones | Function: | Welding Solder Paste |
| Heating Zone Length: | 3100mm | Warranty: | 1 Year |
| Color: | White | SIZE: | 4400* 900*1450mm |
| High Light: | 32kw Surface Mount Oven,32kw Reflow Soldering Machine,3100mm Reflow Soldering Machine |
||

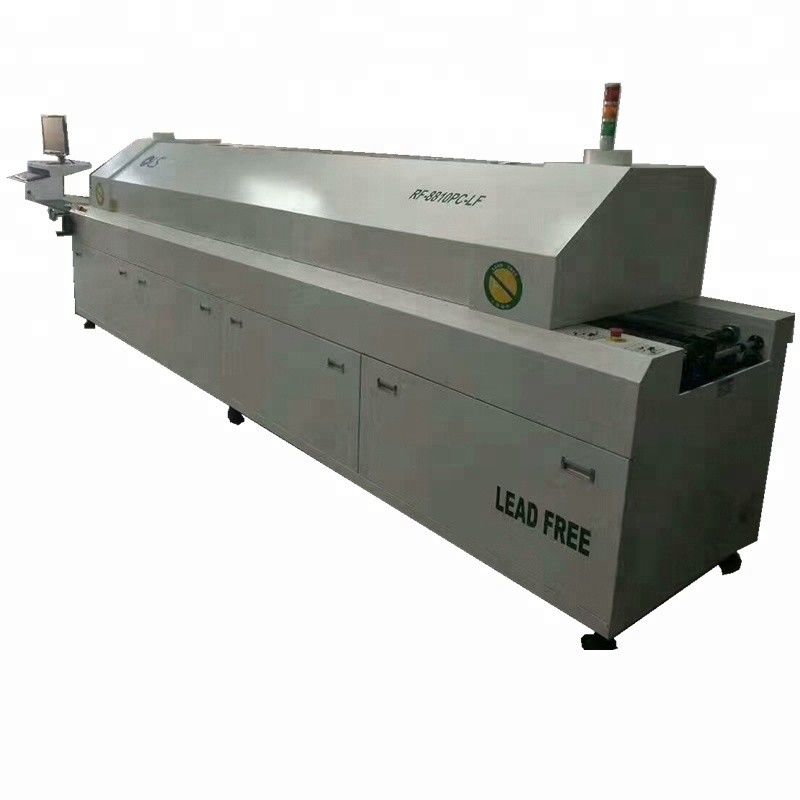

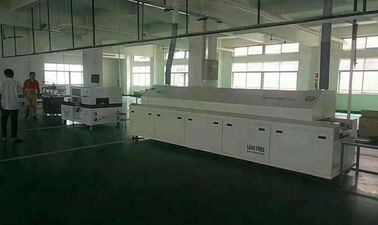

8 Heating Zones Reflow Soldering Machine
Product parameters:
|
use solder paste type |
Lead-free solder/ordinary solder |
|
Suitable for element types |
BGA, CSP, single/double panel, etc |
|
Heating area |
upper and down 8 heating zones, and 2 cooling zones |
|
Heating zone length |
3100 mm |
|
temperature control mode |
PC + PLC control |
|
Temperature control precision |
+ / - 1 ℃ |
|
The temperature control range |
room temperature to 350 ℃ |
|
PCB transverse temperature deviation |
< ±2℃ |
|
The heating time |
Approx 20 min |
|
transport transmission |
network chain transmission + guide rail |
|
Chain guide the wide range |
from 20 to 300 mm |
|
Network belt width |
400 mm |
|
The transmission speed |
25 ~ 2000mm/min |
|
PCB transport direction |
left to right (right to left) optional |
|
power supply |
3 phase , 380 v, 50 hz |
|
Start power |
32kw |
|
Normal work power |
7 kw |
|
transport wind way |
All hot air |
|
Net weight |
1600 kg |
|
The machine size |
L4400*H1450*W900mm |
Product features:
Unique advanced heating system of longevity
1. The heating system with high efficiency and energy saving of Sweden 110 v nickel flipping hair heat pipe, radiation power peak wavelength 4 um, cooperate with curved reflector, high thermal efficiency, fast temperature rise, special forced hot air circulation system structure, make the PCB and components heated evenly, completely eliminate the "shadow effect".
2. Adopts the solid state relay Taiwan yangming large current output, safe, reliable, combined with the temperature controller of fuzzy control, has been monitoring the change of ambient temperature and heat value, with the minimum pulse control heating device, fast response, guarantee + / - 1 ℃, temperature control precision machine error within the plus or minus 2 ℃, the temperature distribution within the length direction of the temperature distribution in the IPC standards.
3. The temperature control adopts imported fuzzy control and PID intelligent computing precision controller, through the PID intelligent operation, automatic control calorific value, the fuzzy control function increase overshoot and inhibiting function and fast response to external heat change function, the fastest speed response to the change of the external heat and temperature through the internal control to ensure more balanced.
4. Heat pipes module design, convenient maintenance and dismantling.
5. The high temperature and high speed motor adopt Taiwan three, wind smoothly, little vibration, low noise.
6. The furnace can be overall open, is advantageous for the chamber of a stove or furnace clean.
7. With super bad, temperature, fault diagnosis, sound and light alarm
8. Power, heat up quickly, from room temperature to constant temperature of about 15 minutes.
9. Special SSR radiator, radiator efficiency is greatly improved, prolong its service life effectively
10. Using high temperature protection system, furnace are made of special materials suitable for lead-free welding, welding area equipped with rosin flux recovery system, protect the environment.
Reliable and stable transmission system
1. The Taiwan STK stepless variable speed motor drive system, electric belt line speed stepless speed regulator, cooperate 1:15 0 STK turbine reducer, smooth operation, the speed is 200-1800 - mm/min stepless adjustable, and have the accurate digital linear velocity of the instructions.
2. Adopt independent wheel structure and flat support, form a complete set of stainless steel mesh belt, smooth operation, speed precision can be up to + 20 mm/min.
Special stainless steel mesh belt b word, durable wear resistant.Use for a long time variant not easily.
