| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Name: | Wave Welding Machine ; Heating Machine ; SMT Machine | Max PCB Size: | 30-300mm |
|---|---|---|---|
| Finger Material: | Ti | Usage: | SMT ; LED ; SMD ; And Son On |
| Control: | Keypad | Application: | PCB Assembly ; DIP; Through Hole |
| Preheating Method: | Hot Air | Preheating Zone: | 3 |
| Other: | Accept Customize | Preheater Consumption: | 220V 6KW |
| High Light: | 1450mm SMT Soldering Machine,0.5MPa SMT Soldering Machine,1450mm PCB Soldering Machine |
||

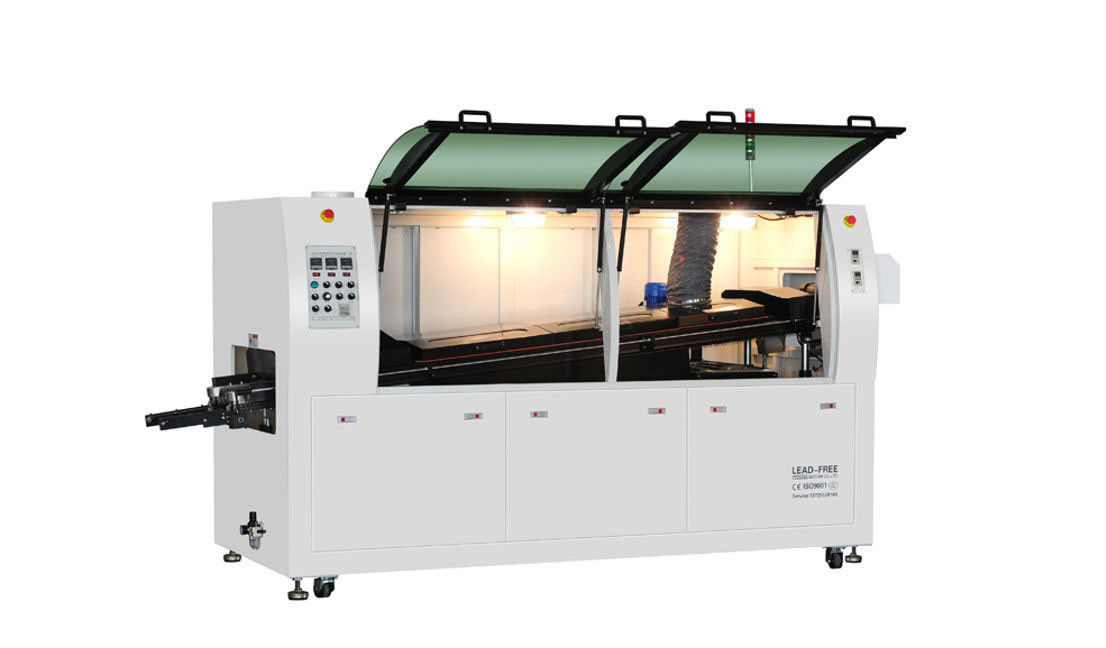

Hot Air SMT Soldering Machine
Lead-free Hot Air Wave Soldering Machine, as a member of Jaguar High-end series of Wave Soldering, standard configured 3 pre-heating zone, and totol pre-heating zone length up to 1600mm, pre-heating zone structure is independ control, it's better to ensure pre-heat effect, and finally to ensure soldering effect. 3 kinds of material options (316L Stainless Steel ; Ti ; Cast Iron Enamel)
| Number of Pre-heaters | 3 |
| Pre-heater Passage | 1450mm |
| Body size | 2800(L)*1250(W)*1560(H) |
| Outside dimension | 3600(L)*1250(W)*1560(H) |
| Weight | 1000KG |
| Total/steady consumption | 19KW/5-7KW |
| Air supply | 0.5MPa |
| Preheater style | Hot air |
| Preheater consumption | 220V 6KW |
| Control method | PC |
| Range of temp. set-point | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder Application | Lead-free / Sn-Pb |
| Solder pot capacity | 280KG |
| Solder pot temperature | 300ºC |
| Solder pot consumption | 380V 9KW |
| Solder temp. control method | PID&SSR |
| Wave motor power | 1KW 220V |
| Solder melting | About 120mins for setting 250ºC |
| PCB width | 50-300mm |
| Conveyor speed | 0-1800mm/min |
| Conveyor direction | L→R (R→L optional) |
| Conveyor inclination | 4-7 º |
| Flux pressure/capacity | 3-5 bar/5.2L |
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.
4. Preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

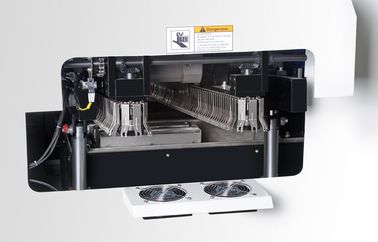

5. Titanium solder fingers, high strengthened double v-groove with tin resistant
