| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| PCB Size: | Max:1200*350mm, Min:50*50mm | PCB Thickness: | 0.5-3mm |
|---|---|---|---|
| Display: | LCD | Mounting Precision: | ±0.02mm |
| Mounting Height: | 13±2mm | Air Force: | 0.5MPa |
| Power: | 220V, 50Hz | Air Consumption: | <100L/min |
| Operating Environment: | 23±3℃ | Feeder Type: | Electronic Feeder |
| Number Of Feeders: | 1*20 Pcs(8mm Feeder) | ||
| High Light: | 30000CPH PCB Pick And Place Machine,0.5MPa PCB Pick And Place Machine,30000CPH PCB Component Mounting Machine |
||

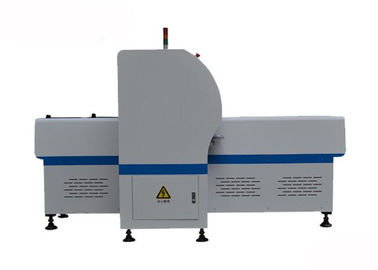

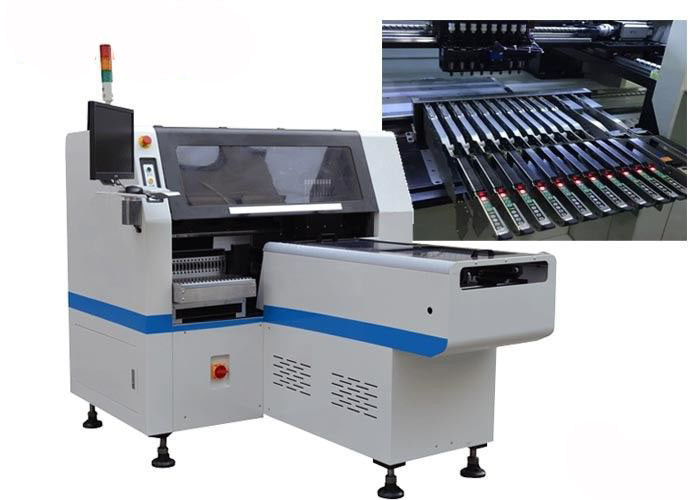

20 Feeders PCB Pick And Place Machine
Specification:
| Machine size | 2520×1550*1440mm |
| Weight | 1800KGS |
| PCB size | Max:1200*350mm, Min:50*50mm |
| PCB thickness | 0.5-3mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separate placing or separated picking and separated placing |
| Display | LCD |
| Input device | Keyboard, mouse |
| Number of camera | 2 sets |
| Mounting precision | ±0.02mm |
| Mounting height | 13±2mm |
| Mounting Speed | 30000CPH |
| Components | LED, capacitors, resistors, shaped components, ect(Max 10mm, Min:0402) |
| Component distance | 0.2mm |
| Conveyor transmission | Max length:1200mm |
| Transmission speed | >500mm/sec |
| Transmission direction | Single(leftàright or right à left) |
| Transmission mode | Online drive |
| Air consumption | <100L/min |
| X, Y axies driving | Servo motor |
| Number of feeders | 1*20 pcs(8mm feeder) |
| Number of nozzles | Single module, total 9 pcs) |
| Feeder type | Electronic feeder |
| Power | 220V, 50Hz |
| Power consumption | 4KW |
| Air force | 0.5Mpa |
| Operating environment | 23±3℃ |
Features:
Application:
1, Suitable for 0.6, 0.9, 1.2 m hard light board disposable mounting, 0.5, 1 m LED soft light with mounting
2, The placement head is divided into two groups, each group of 15 nozzles, A, B materials for cross-mounting, single-disc material can be single, and the same material is always attached to the same light bar.
