| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New | Warranty: | 1 YEAR |
|---|---|---|---|
| Name: | Pick And Place Machine | Function: | Mounting Components On PCB Board |
| Weight: | 1000kg | Dimension: | 1930*1180*1450mm |
| Mounting Heads: | 8 Pcs | Feeder Numbers: | 16 Pcs |
| Speed: | Max 42000cph | Max PCB Size: | 1200*300mm |
| Power Supply: | Single Phase ,220v .50 HZ | Position Method: | Vision Mark Position |
| High Light: | 42000CPH SMD Pick And Place Machine,30000cph SMD Mounting Machine,42000CPH SMD Mounting Machine |
||

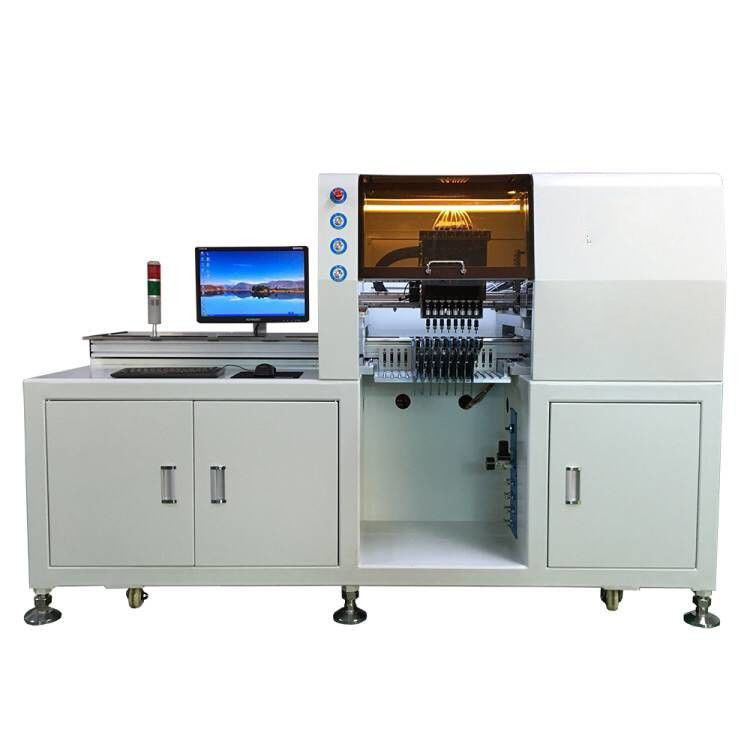

This fully automatic pick and place machine , it's our factory special design for led lights . can for all kinds of led chips , resistors , capacitors also can for IC (chips 0805-7070 etc) . we have exported our pick and place machine to 32 countries , all working well and get good feedback from customers .
|
working type
|
semi-automatic
|
|

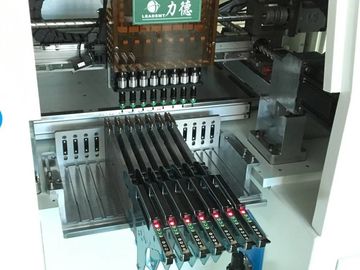

mounting heads
|
8 pcs
|
|
max speed
|
42000CPH , stable speed : 30000cph
|
|
position accuracy
|
+ - 0.005mm
|
|
position method
|
vision mark position
|
|
max pcb size
|
1200 * 300 mm
|
|
mounting components
|
all above 0603 leds ( 1206/2014/3014/2835/3528/5050/5630/5730/7070/etc /resistors ,capacitors ,and IC )
|
|
weight :
|
1000 KG
|
Main feature :
1. stronger Panasonic Servo Motors Imported From Japan ,
2. high Precision screw ball rod -Brand NSK imported from Japan ,
3. DFI World Class Industrial computer system , imported from Taiwan ,
4. flexible wires imported from Italy ,
5. In order to keep the air pressure more stable , we install the three sets of Vacuum pumps
6, Negative air Pressure display switches Brand Kita
