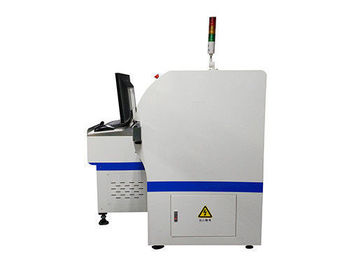

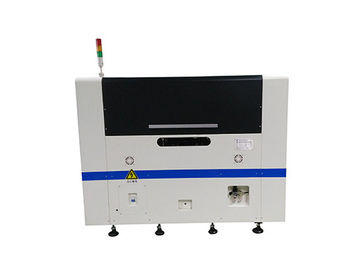

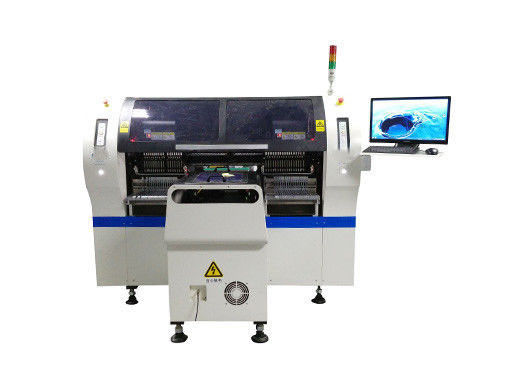

32 Feeders LED Assembly Machine
Product description
SMT pick and place machine is for led, capacitors, resistors, IC, Shaped components, etc. Apply to Led lamp manufacturer, PCB production line etc . Multi-functional module pick and place machine for LED, capacitors, resistors and so on. Connecting in series and placing the same PCB on line. And it’s identified the correct position by camera. So it’s high precision and good stability.
Technical Data
| PCB | PCB Length Width | Max:345*600mm Min: 110*80 mm |
| PCB Thickness | 0.5~5mm | |
| PCB Clamping |
Adjust and fix PCB automatically by software |
|
| Mounting Mode | Group to pick and group to mount | |
| O.S. | system | Windows7 |
| software | R&D independently | |
| Display | LED Monitor | |
| Input Device | Keyboard, Mouse | |
| Feeding system | No. of feeders | 32 PCS |
| No. of nozzles | 32 PCS | |
| Feeder type | Electronic feeder | |
| Vision System | No. of Camera | 5 sets of imported camera |
| Vision for the flight identification + MARK correction | ||
| Mounting Precision | ±0.02mm chip | |
| Mounting Height | <15mm | |
| Mounting Speed | 150000CPH(optimum) | |
| Components | LED 2121/2727/3528/3535/5050 and resistor, capacitors, bridge rectifiers. | |
| Components Space | 0.2mm | |
| Power | 220AC 50HZ | |
| Power Consumption | 5 kw | |
| Operating Environment | 23℃±3 | |
| Conveyor Transmission | Max length:600 mm | |
| Transmission Speed | >500mm/sec | |
| Transmission Direction | Single(left→right or right→left) | |
| Transmission Mode | Online drive | |
| Air pressure | >5.0kg/cm2 | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module | Independent research and development by ETON | |
| X,Y Axies Driving | Servo motor control for X,Y,Z axies |
