| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE , ISO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100pcs per month |
| Condition: | New | After Warranty Service: | Video Technical Support, Online Support |
|---|---|---|---|
| Local Service Location: | None | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 YEAR |
| Core Components: | Motor | After-sales Service Provided: | Video Technical Support, Free Spare Parts, Online Support |
| Product Name: | High Speed Automatic SMT Machine | Mounting Speed: | 12000CPH |
| Component Size: | 0603-43mm QFP/BGA | PCB Size: | 50 * 50 - 460 * 360 Mm |
| PCB Thickness: | 0.5mm To 2.6mm | Power Voltage: | AC 3 Phase 200V±10%, 50/60HZ |
| Power: | 2.5-5.0KVA | Air Pressure: | 0.5-0.7Mpa(5.1~7.1kgf/cm2) |
| Machine Size: | 1200mm(W)*1700mm(D)*1545mm(H ) | Machine Weight: | 1730KG |
| High Light: | 12000CPH SMT Mounting Machine,2.6mm SMT Mounting Machine,12000CPH smt mounter machine |
||
|

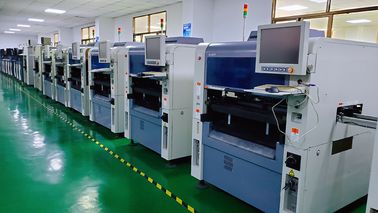

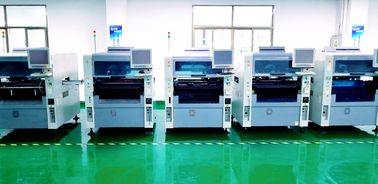

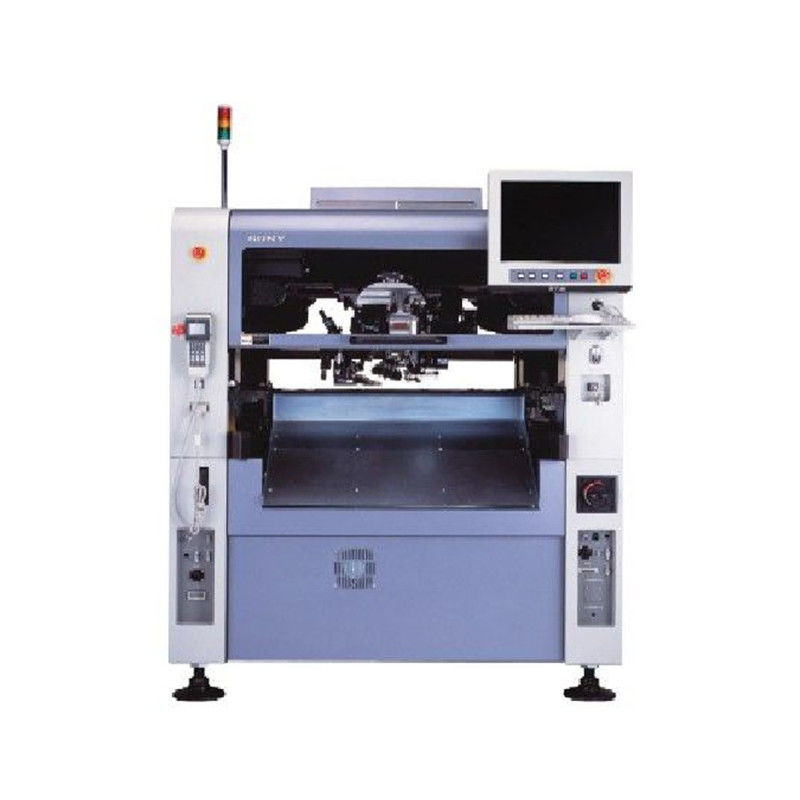

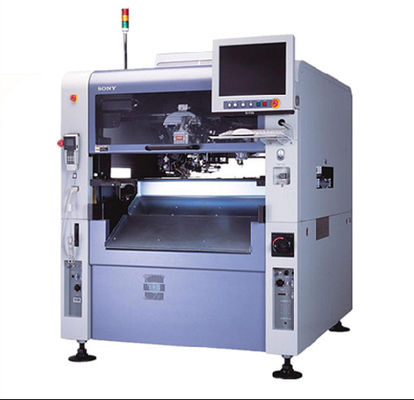

Product name
|
High speed automatic SMT machine
|
|
Mounting speed
|
12000CPH
|
|
Component size
|
0603-43mm QFP/BGA
|
|
Mounting accuracy
|
±50μm@μ+3σ/Chip；±30μm@μ+3σ/QFP
|
|
PCB size
|
50 * 50 - 460 * 360 mm
|
|
Visual system
|
Flight camera + fixed high pixel camera
|
|
Mounting head
|
1 head 6 nozzles
|
|
Component thickness
|
0402 (01005)-12mm IC (mobile camera) 6mm-25mm IC (fixed camera)
|
|
PCB thickness
|
0.5mm to 2.6mm
|
|
Number of feeders
|
48
|
|
Power voltage
|
AC 3 phase 200V±10%, 50/60HZ
|
|
Power
|
2.5-5.0KVA
|
|
Air pressure
|
0.5-0.7Mpa(5.1~7.1kgf/cm²)
|
|
Machine size
|
1200mm(W)*1700mm(D)*1545mm(H )
|
|
Machine weight
|
1730KG
|
|
Use environment
|
Ambient temperature 15℃～30℃
Ambient humidity 30%～70% (no condensation) |
|
Working noise
|
35-65dB
|
|
Correction method
|
Machine vision system, multi-point MARK vision correction
|
|
Drive System
|
AC servo, AC motor
|
|
Data transmission
|
3.5-inch floppy disk/USB interface input
|
|
Operating system
|
Chinese, English, Japanese operation interface (WINDOWS system control platform)
|
|
Control mode
|
Fully automatic
|
Product Advantages
1. 4 pcs of cameras: 2pc of Mark, and 2 pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.
2. XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.
3. Servo Motor and Drive, precise linear guide, Vacuum generator, high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.
4, New mounting mode: the PCB board is fixed, and the head moves in the direction of XYZ axis. When attaching high components, the stability is improved.
The reference configuration
1. Control system: industrial computer + precision motion control card
2. software system :ETON independently developed operating system
3. Motion motor: magnetic levitation linear motor
4. Nozzle layout: independently develop various types of nozzles
5. Sliding device: precision screw + linear guide rail
6. Visual device: mark point recognition + component recognition + high-precision recognition
7. Feeder: adopt precise electric feeder
