Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Showroom Location:
None
Warranty:
1 YEAR
After-sales Service Provided:
Video Technical Support, Field Maintenance And Repair Service, Online Support
Usage:
PCBA Production Line
Package:
Wooden Box
Delivery:
Required
Application:
SMT PCB Assembly Production Line
Type:
Automatic
Quality:
High Rank
High Light:
12mm SMT Assembly Equipment
,
14900 CPH SMT Assembly Equipment
,
14900 CPH smt placement machine

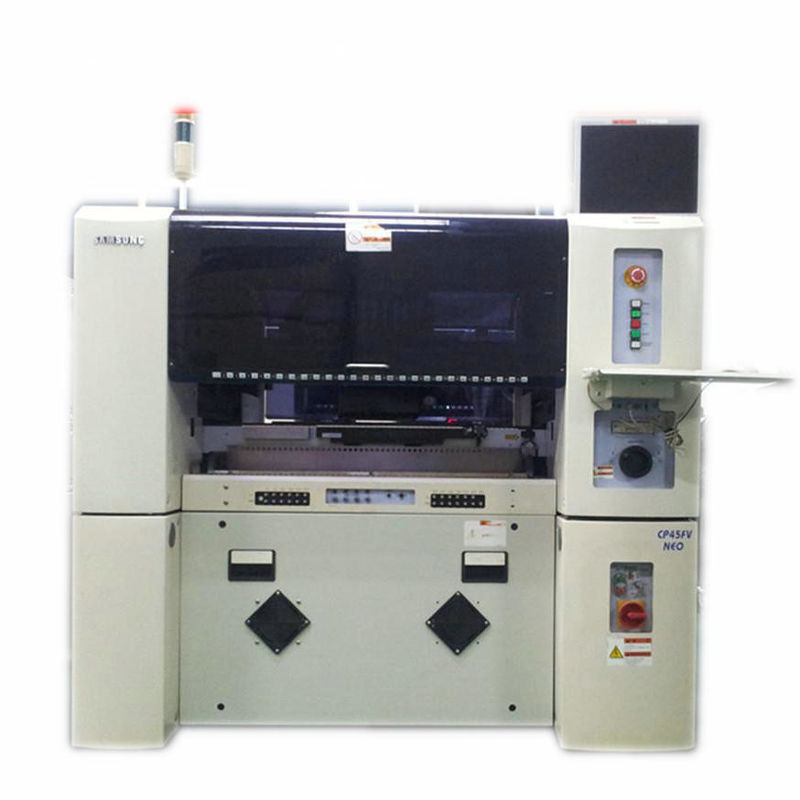

14900 CPH SMT Assembly Equipment
Product Description
Technical Parameters
Placement speed
14900CPH(IPC9850)
Component recognition range
1005(0402)～22mmIC 0603(0201) ～12mm(option)
Mounting accuracy
±0.08mm/CHIP;±0.04mm/CFP
PCB size (mm)
50 × 100 × 0.38 ～ 510 × 460 × 4.2 (option)
Number of feeders
(8mm feeder) 104EA 98EA
Dimensions (L × W × H) (mm)
1,650 × 1,540 × 1,370
Feature
High-speed placement CSP
When mounting CSP or QFP, the speed performance of the flying image system is more obvious, not only can pick up 6 components at a time, but also can recognize when the arm moves, making it mount to the most accurate position.
High-speed flight centering imaging system
This unique SHSV system has 6 placement heads, and each placement head is equipped with a dedicated imaging system. This flight calibration allows the machine to identify components without moving to a fixed position, thereby effectively using the machine's movement to make the entire placement Loading speed increased to 0.178 seconds / CHIP.
Stand-alone solution
This is a high-speed, flexible SMD placement system that can process a variety of components at high speed. This single-machine solution has been adopted by many customers and gradually replaces the traditional placement machine + multi-function machine solution.s.
Wide component identification range
The fixed image system is used in combination with the flying image system to make the component placement range from 0603 to 42mmIC, including 0.3mm fine pitch QFP & 0.5mm fine pitch CSP
Flexible placement head design
All placement heads are designed to handle fine-pitch components. This performance makes placement procedures simple and efficient, thereby increasing work efficiency and flexibility.
Digital lighting system
The lighting system is adjusted in advance according to the shape of the component, and 16 types of brightness are controlled by the program, and the brightness is continuously enhanced to identify the component image most clearly.
